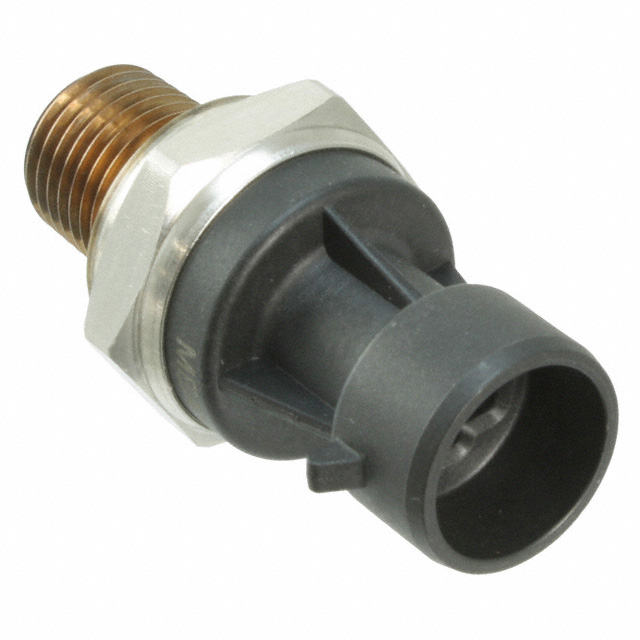

U7139-150PG-5W0000

Active

TE Connectivity Measurement Specialties

SENSOR 150PSI 1/4NPT W/CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

U7139-150PG-5W0000

Active

TE Connectivity Measurement Specialties

SENSOR 150PSI 1/4NPT W/CONN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 319.95

Description

General part information

U7139 Series

Pressure Sensor 150PSI (1034.21kPa) Vented Gauge Male - 1/4" (6.35mm) NPT 0.5 V ~ 4.5 V Cylinder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	U7139-150PG-5W0000	U7139 Series

Accuracy	0.25 %	0.25 %
Applications	-	Industrial Automation
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	-	87.02 - 435.11 PSI
Maximum Pressure	-	600 - 3000 kPa
Maximum Pressure [Max]	2068.43 kPa	620.53 - 2068.43 kPa
Maximum Pressure [Max]	300 PSI	90 - 300 PSI
Operating Pressure	1034.21 kPa	2 - 1034.21 kPa
Operating Pressure	150 PSI	29.01 - 150 PSI
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	4.5 V	4.5 V
Output [Min]	0.5 V	0.5 V
Output Type	Analog Voltage	Analog Voltage
Package / Case	Cylinder	Cylinder
Port Size	-	Male, BSPP
Port Size	-	6.35 mm
Port Size [custom]	NPT	NPT
Port Size [custom]	Male	Male
Port Size [x]	0.25 "	0.25 "
Port Size [x]	6.35 mm	6.35 mm
Port Style	Threaded	Threaded
Pressure Type	Vented Gauge	Vented Gauge
Termination Style	Connector	Connector
Voltage - Supply [Max]	5.25 V	5.25 V
Voltage - Supply [Min]	4.75 V	4.75 V

U7139 Series

SENSOR 150PSI 1/4NPT W/CONN

Part	Operating Pressure	Operating Pressure	Output Type	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Min]	Output [Max]	Port Style	Pressure Type	Port Size	Port Size	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties U7139-150PA-5W0000	1034.21 kPa	150 PSI	Analog Voltage	NPT	0.25 "	6.35 mm	Male	Cylinder	2068.43 kPa	300 PSI	Temperature Compensated	Industrial Automation	125 °C	-40 °C	Connector	0.25 %	4.75 V	5.25 V	0.5 V	4.5 V	Threaded
TE Connectivity Measurement Specialties U7139-150PG-5W0000	1034.21 kPa	150 PSI	Analog Voltage	NPT	0.25 "	6.35 mm	Male	Cylinder	2068.43 kPa	300 PSI	Temperature Compensated		125 °C	-40 °C	Connector	0.25 %	4.75 V	5.25 V	0.5 V	4.5 V	Threaded	Vented Gauge
TE Connectivity Measurement Specialties U7139-002BA-2W0000	2 bar	29.01 PSI	Analog Voltage					Cylinder			Temperature Compensated	Industrial Automation	125 °C	-40 °C	Connector	0.25 %	4.75 V	5.25 V	0.5 V	4.5 V	Threaded		BSPP, Male	6.35 mm	87.02 PSI	600 kPa
TE Connectivity Measurement Specialties U7139-010BA-2W0000	10 bar	145.04 PSI	Analog Voltage					Cylinder			Temperature Compensated	Industrial Automation	125 °C	-40 °C	Connector	0.25 %	4.75 V	5.25 V	0.5 V	4.5 V	Threaded		BSPP, Male	6.35 mm	435.11 PSI	3000 kPa
TE Connectivity Measurement Specialties U7139-030PA-5W0000	206.84 kPa	30 PSI	Analog Voltage	NPT	0.25 "	6.35 mm	Male	Cylinder	620.53 kPa	90 PSI	Temperature Compensated	Industrial Automation	125 °C	-40 °C	Connector	0.25 %	4.75 V	5.25 V	0.5 V	4.5 V	Threaded
