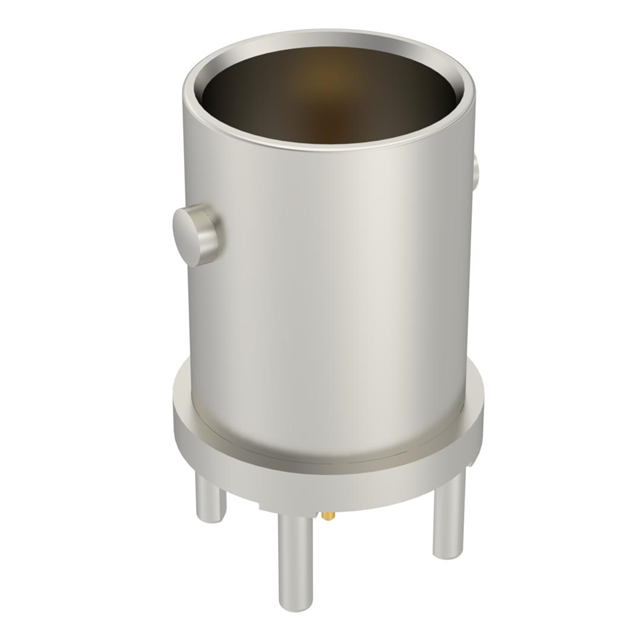

BNC 75 HDTV / STRAIGHT JACK RECE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC 75 HDTV / STRAIGHT JACK RECE

Technical Specifications

Parameters and characteristics for this part

Specification	R142500740

Body Finish	Nickel
Body Material	Zinc Alloy
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	12 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Fastening Type	Dielectric Material	Mating Cycles	Impedance	Body Finish	Center Contact Plating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Voltage Rating	Contact Termination	Shield Termination	Frequency - Max [Max]	Mounting Type	Number of Ports	Housing Color
Radiall USA, Inc. R142500740	Beryllium Copper	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500	75 Ohms	Nickel	Gold	Zinc Alloy	-65 ░C	165 °C	BNC	Female Socket Jack	500 V	Solder	Solder	12 GHz	Through Hole	1	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
