951206-7622-AR

Active

3M (TC)

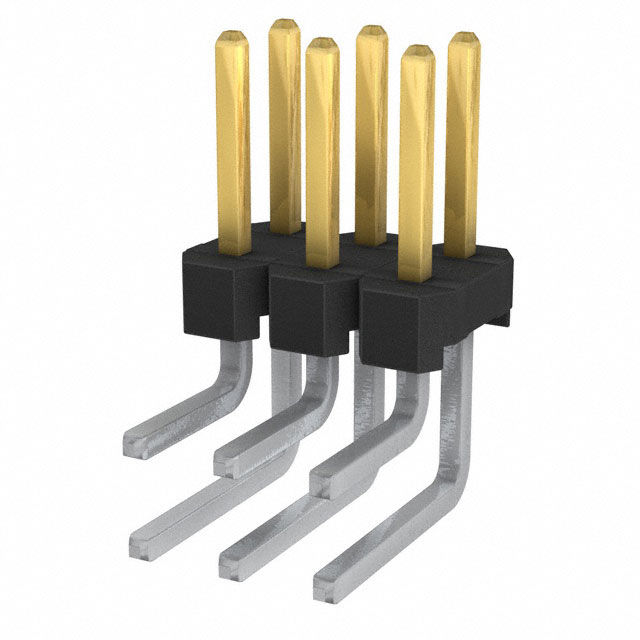

CONN HEADER R/A 6POS 2MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER R/A 6POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	951206-7622-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	4.4 mm
Contact Length - Mating	0.173 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Height [z]	Insulation Height [z]	Contact Type	Material Flammability Rating	Number of Rows	Insulation Material	Fastening Type	Connector Type	Number of Positions Loaded	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Contact Finish - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Material	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post
3M (TC) 951206-2520-AR-TP	0.079 in	2 mm	Solder	0.06 in	1.52 mm	Male Pin	UL94 V-0	2	Thermoplastic	Push-Pull	Header	All	Unshrouded	0.079 in	2 mm	Tin	-25 °C	105 ░C	Surface Mount	Black	Gold	Square	Flash	4 mm	0.157 in	1 çm	39.4 çin	6	Copper Alloy
3M (TC) 951206-7622-AR	0.079 in	2 mm	Solder			Male Pin	UL94 V-0	2	Thermoplastic	Push-Pull	Header	All	Unshrouded	0.079 in	2 mm	Tin	-55 °C	125 °C	Through Hole Right Angle	Black	Gold	Square	Flash	4.4 mm	0.173 in	1 çm	39.4 çin	6	Copper Alloy	0.157 in	4 mm	0.11 in	2.79 mm
