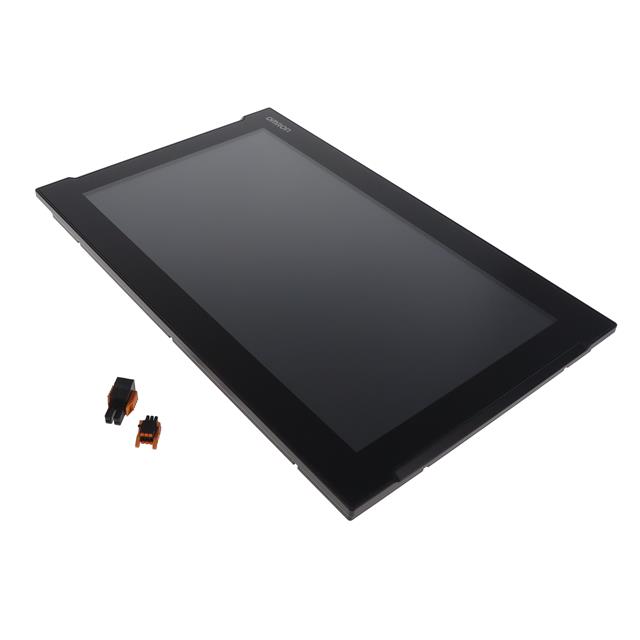

Specification	NYP35-40360-19WC1000

Core Processor	Intel® Core™ i5-7300U
Core Processor Frequency	2.6 GHz
Display Size	18.5 in
Display Type	Touchscreen
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Panel Mount
Operating System	Windows 10
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Type	Panel PC
Voltage - Supply (Maximum)	28.8 VDC
Voltage - Supply (Minimum)	20.4 V

NYP35 Series

Part	Type	Expansion Type	Operating System	Display Size	Display Type	Core Processor	Core Processor Frequency	Core Processor Core Count	Mounting Type	Voltage - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Storage Capacity	Storage Type	Ingress Protection IP Rating	Ingress Protection Description	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Capacity (Installed)	Memory Type	Features	Approval Agency	Memory Max Capacity
Omron Automation and Safety NYP35-40000-15WC1000	Panel PC	PCI PCIe	Windows 10	15.6 in	Touchscreen	Intel® Core™ i5-7300U	2.6 GHz	2 Core	Panel Mount	24 VDC	0 °C	55 °C	128 GB	SSD
Omron Automation and Safety NYP35-40370-15WC1000	Panel PC	PCIe	Windows 10	15.4 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount		0 °C	55 °C		Cfast	IP65	Dust Tight Water Resistant	28.8 VDC	20.4 V	16 GB	DDR4
Omron Automation and Safety NYP35-30350-12WC1000	Panel PC	PCIe	Windows 10	12.1 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount		0 °C	55 °C		Cfast	IP65	Dust Tight Water Resistant	28.8 VDC	20.4 V	8 GB	DDR4
Omron Automation and Safety NYP35-213C6-12WC1000
Omron Automation and Safety NYP35-30370-12WC1000	Panel PC		Windows 10	12.1 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount	24 VDC	0 °C	55 °C		Cfast	IP65	Dust Tight Water Resistant			8 GB	DDR4	Micro SD Card Slot
Omron Automation and Safety NYP35-213C6-15WC1000	Panel PC	PCIe	Windows 10	15.4 in	Touchscreen	Intel® Core™ i5-7300U	2.6 GHz		Panel or VESA Mount	24 VDC	0 °C	55 °C	320 GB	HDD	IP65	Dust Tight Water Resistant			4 GB	DDR4	Micro SD Card Slot	cULus EAC KC RCM
Omron Automation and Safety NYP35-30370-15WC1000	Panel PC		Windows 10	15.4 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount	24 VDC	0 °C	55 °C	256 GB	SSD	IP65	Dust Tight Water Resistant				DDR4		cULus EAC KC	8 GB
Omron Automation and Safety NYP35-213C1-15WC1000	Panel PC	PCIe	Windows 10	15.4 in	Touchscreen	Intel® Core™ i5-7300U	2.6 GHz		Panel or VESA Mount	24 VDC	0 °C	55 °C	320 GB	HDD	IP65	Dust Tight Water Resistant			4 GB	DDR4	Micro SD Card Slot	cULus EAC KC RCM
Omron Automation and Safety NYP35-313K1-12WC1000	Panel PC	PCIe	Windows 10	12.1 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount	24 VDC	0 °C	55 °C	128 GB	SSD	IP65	Dust Tight Water Resistant			8 GB	DDR4		cULus EAC KC
Omron Automation and Safety NYP35-30000-19WC1000	Panel PC	PCIe		19 in	Touchscreen	Intel® Core™ i5-7300U			Panel Mount		0 °C	55 °C			IP65	Dust Tight Water Resistant	28.8 VDC	20.4 V	8 GB	DDR4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

NYP35-40360-19WC1000 | Datasheet
