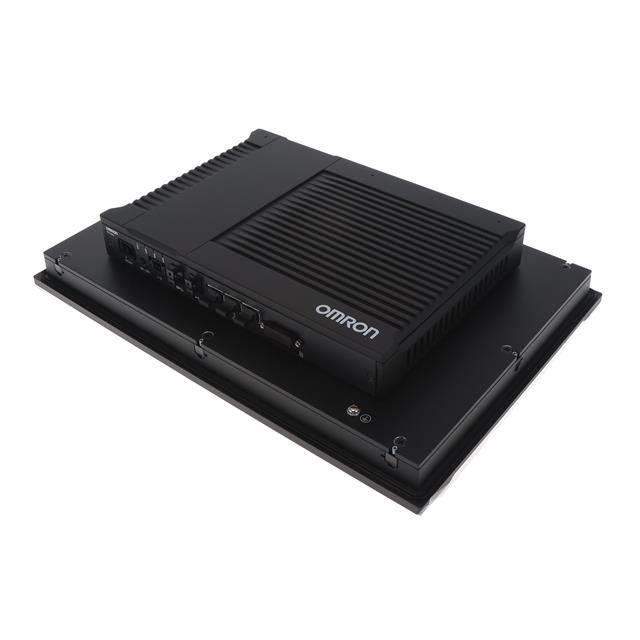

NYP35 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
PNL15 I57G 16G NOOSHD S
| Part | Ingress Protection IP Rating | Ingress Protection Description | Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Display Size | Display Type | Mounting Type | Storage Type | Memory Capacity (Installed) | Memory Type | Operating Temperature (Min) | Operating Temperature (Max) | Expansion Type | Operating System | Core Processor | Voltage - Supply | Features | Approval Agency | Core Processor Frequency | Storage Capacity | Memory Max Capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | ||||||||||||||||||||||
Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 28.8 VDC | 20.4 V | 15.4 in | Touchscreen | Panel Mount | Cfast | 16 GB | DDR4 | 0 °C | 55 °C | PCIe | Windows 10 | Intel® Core™ i5-7300U | ||||||
 Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 28.8 VDC | 20.4 V | 12.1 in | Touchscreen | Panel Mount | Cfast | 8 GB | DDR4 | 0 °C | 55 °C | PCIe | Windows 10 | Intel® Core™ i5-7300U | ||||||
Omron Automation and Safety | ||||||||||||||||||||||
Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 12.1 in | Touchscreen | Panel Mount | Cfast | 8 GB | DDR4 | 0 °C | 55 °C | Windows 10 | Intel® Core™ i5-7300U | 24 VDC | Micro SD Card Slot | |||||||
 Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 15.4 in | Touchscreen | Panel or VESA Mount | HDD | 4 GB | DDR4 | 0 °C | 55 °C | PCIe | Windows 10 | Intel® Core™ i5-7300U | 24 VDC | Micro SD Card Slot | cULus EAC KC RCM | 2.6 GHz | 320 GB | |||
 Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 15.4 in | Touchscreen | Panel Mount | SSD | DDR4 | 0 °C | 55 °C | Windows 10 | Intel® Core™ i5-7300U | 24 VDC | cULus EAC KC | 256 GB | 8 GB | ||||||
Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 15.4 in | Touchscreen | Panel or VESA Mount | HDD | 4 GB | DDR4 | 0 °C | 55 °C | PCIe | Windows 10 | Intel® Core™ i5-7300U | 24 VDC | Micro SD Card Slot | cULus EAC KC RCM | 2.6 GHz | 320 GB | |||
 Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 12.1 in | Touchscreen | Panel Mount | SSD | 8 GB | DDR4 | 0 °C | 55 °C | PCIe | Windows 10 | Intel® Core™ i5-7300U | 24 VDC | cULus EAC KC | 128 GB | |||||
 Omron Automation and Safety | IP65 | Dust Tight Water Resistant | Panel PC | 28.8 VDC | 20.4 V | 19 in | Touchscreen | Panel Mount | 8 GB | DDR4 | 0 °C | 55 °C | PCIe | Intel® Core™ i5-7300U |
