HSM3-6.4-32-1

Active

Essentra Access Solutions

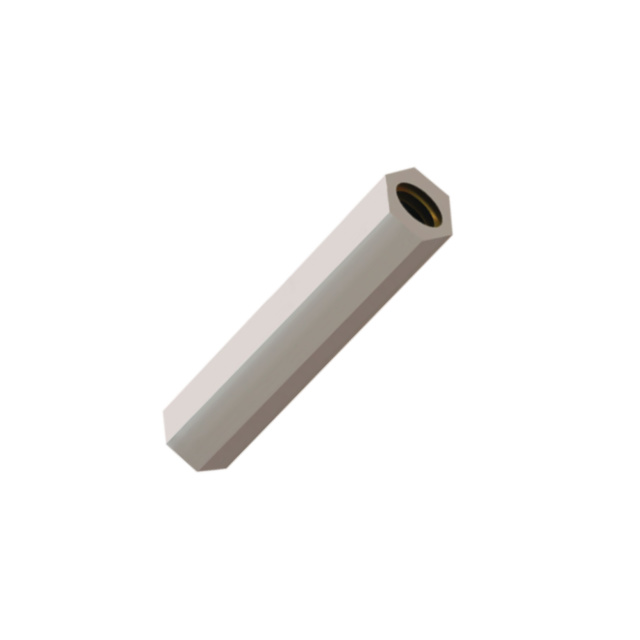

HEX STANDOFF M3 NYLON 32MM

Deep-Dive with AI

Search across all available documentation for this part.

HSM3-6.4-32-1

Active

Essentra Access Solutions

HEX STANDOFF M3 NYLON 32MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSM3-6.4-32-1

Between Board Height	32 mm
Between Board Height	1.26 in
Color	Natural
Diameter - Outside [diameter]	0.252 in
Diameter - Outside [diameter]	6.4 mm
Gender	Female
Length - Overall [x]	1.26 in
Length - Overall [x]	32 mm
Material	Brass Insert, Nylon
Screw, Thread Size	M3
Threaded/Unthreaded	Threaded
Type	Hex Standoff

HSM3 Series

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Gender	Material	Type	Between Board Height	Between Board Height	Threaded/Unthreaded	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Color	Length - Overall	Length - Overall
Essentra Access Solutions HSM3-6.4-29-2	0.252 in	6.4 mm	Female Male	Brass Insert Nylon	Hex Standoff	29 mm	1.142 in	Threaded	1.378 "	35 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-15-3	0.252 in	6.4 mm	Male	Brass Insert Nylon	Hex Standoff	15 mm	0.591 in	Threaded			M3	Natural	27 mm	1.063 "
Essentra Access Solutions HSM3-6.4-30-1	0.252 in	6.4 mm	Female	Brass Insert Nylon	Hex Standoff	30 mm	1.181 in	Threaded	1.181 in	30 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-25-1	0.252 in	6.4 mm	Female	Brass Insert Nylon	Hex Standoff	25 mm	0.984 in	Threaded	0.984 in	25 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-20-2	0.252 in	6.4 mm	Female Male	Brass Insert Nylon	Hex Standoff	20 mm	0.787 in	Threaded	1.024 in	26 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-30-2	0.252 in	6.4 mm	Female Male	Brass Insert Nylon	Hex Standoff	30 mm	1.181 in	Threaded	1.417 in	36 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-32-3	0.252 in	6.4 mm	Male	Brass Insert Nylon	Hex Standoff	32 mm	1.26 in	Threaded	1.732 in	44 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-32-1	0.252 in	6.4 mm	Female	Brass Insert Nylon	Hex Standoff	32 mm	1.26 in	Threaded	1.26 in	32 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-20-1	0.252 in	6.4 mm	Female	Brass Insert Nylon	Hex Standoff	20 mm	0.787 in	Threaded	0.787 "	20 mm	M3	Natural
Essentra Access Solutions HSM3-6.4-15-2	0.252 in	6.4 mm	Female Male	Brass Insert Nylon	Hex Standoff	15 mm	0.591 in	Threaded	0.827 in	21 mm	M3	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.51
		10	$ 3.19
		25	$ 3.02
		50	$ 2.95
		100	$ 2.81
		300	$ 2.48

Description

General part information

HSM3 Series

Hex Standoff Threaded M3 Nylon, Brass Insert 1.260" (32.00mm) Natural

Documents

Technical documentation and resources

No documents available
