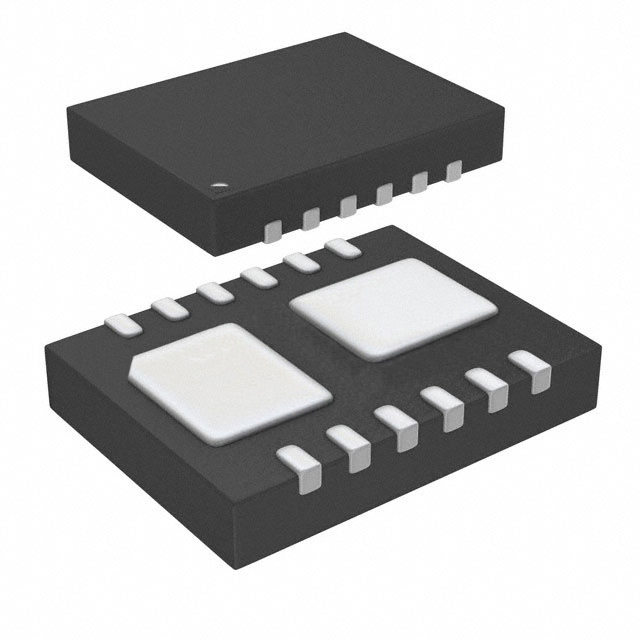

AL9902FDF-13 - AL8812FDF-13

AL9902FDF-13

Active
Diodes Inc

LED DRVR BUCK/BOOST 1-CH PWM/LINEAR 0.4A 12-PIN UDFN T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
AL9902FDF-13 - AL8812FDF-13

AL9902FDF-13

Active
Diodes Inc

LED DRVR BUCK/BOOST 1-CH PWM/LINEAR 0.4A 12-PIN UDFN T/R

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAL9902FDF-13
ApplicationsSignage, Lighting, Backlight
Current - Output / Channel400 mA
DimmingAnalog, PWM
Frequency300 kHz
Internal Switch(s)True
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature [Max]105 °C
Operating Temperature [Min]-40 °C
Package / Case12-UDFN Exposed Pad
Supplier Device PackageU-DFN6040-12
TopologyStep-Down (Buck), Step-Up (Boost)
TypeAC DC Offline Switcher
Voltage - Supply (Max) [Max]500 V
Voltage - Supply (Min) [Min]20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.93
10$ 1.90
25$ 1.63
100$ 1.33
250$ 1.18
500$ 1.09
1000$ 1.01
Digi-Reel® 1$ 2.93
10$ 1.90
25$ 1.63
100$ 1.33
250$ 1.18
500$ 1.09
1000$ 1.01
Tape & Reel (TR) 3000$ 0.92
6000$ 0.87
9000$ 0.85

Description

General part information

AL9902 Series

LINEAR AND PWM DIMMING HIGH VOLTAGE LED DRIVER
