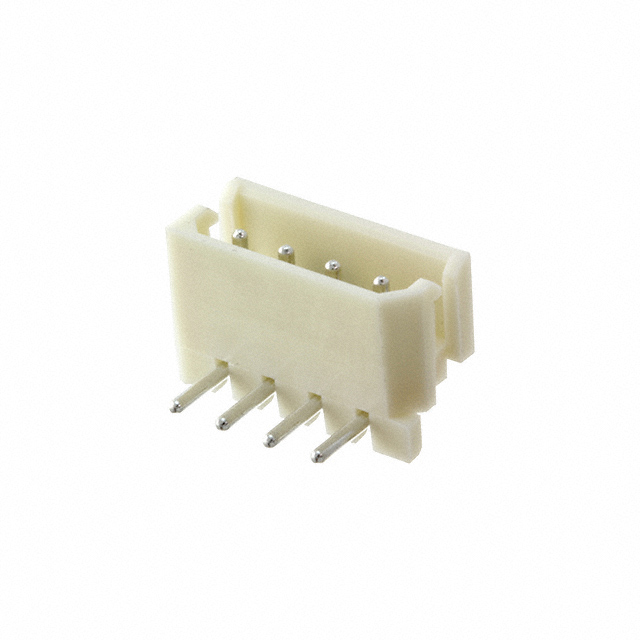

25SH-E-04-TR
ActiveAdam Tech
CONN HEADER R/A 4POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25SH-E-04-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Beige |
| Insulation Height | 4.9 mm |
| Insulation Height | 0.193 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.44 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
Description
General part information
25SH-E Series
Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
