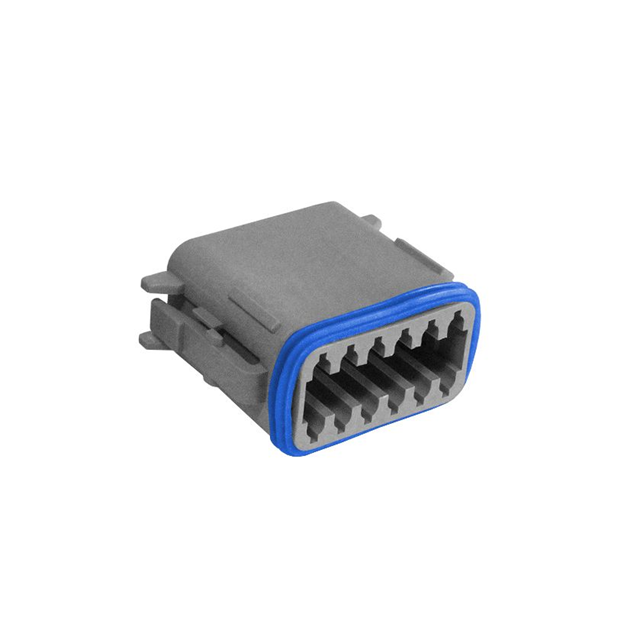

PX0100S12AGY

Active

BULGIN LIMITED

CONN RECTANGULAR SKT 12 POS CRIMP ST CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0100S12AGY

Active

BULGIN LIMITED

CONN RECTANGULAR SKT 12 POS CRIMP ST CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0100S12AGY

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket, Power
Fastening Type	Latch Lock
Features	IP68
Insulation Material	Glass Filled, Polyamide (PA), Polybutylene Terephthalate (PBT), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C

PX0100 Series

Part	Note	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Features	Contact Termination	Number of Rows	Connector Type	Number of Positions	Mounting Type
BULGIN LIMITED PX0100S02GY	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Gray	Female Socket Power	IP68	Crimp	1	Plug	2	Free Hanging (In-Line)
BULGIN LIMITED PX0100S02BK	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Black	Female Socket Power	IP68	Crimp	1	Plug	2	Free Hanging (In-Line)
BULGIN LIMITED PX0100S06GY	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Gray	Female Socket Power	IP68	Crimp	3	Plug	6	Free Hanging (In-Line)
BULGIN LIMITED PX0100S12AGY	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Gray	Female Socket Power	IP68	Crimp	2	Plug	12	Free Hanging (In-Line)
BULGIN LIMITED PX0100S08AGY	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Gray	Female Socket Power	IP68	Crimp	2	Plug	8	Free Hanging (In-Line)
BULGIN LIMITED PX0100S04GY	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Gray	Female Socket Power	IP68	Crimp	2	Plug	4	Free Hanging (In-Line)
BULGIN LIMITED PX0100S03BK	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Black	Female Socket Power	IP68	Crimp	2	Plug		Free Hanging (In-Line)
BULGIN LIMITED PX0100S04BK	Contacts Not Included	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Black	Female Socket Power	IP68	Crimp	2	Plug	4	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	23	$ 2.81
		150	$ 2.76
		250	$ 2.70
		500	$ 2.65
Digikey	Bulk	1	$ 3.16
		10	$ 2.87
		25	$ 2.72
		50	$ 2.65
		100	$ 2.53
		250	$ 2.23

Description

General part information

PX0100 Series

12 Rectangular Connectors - Housings Plug Gray
