T640N16TOFXPSA1

Active

Infineon Technologies

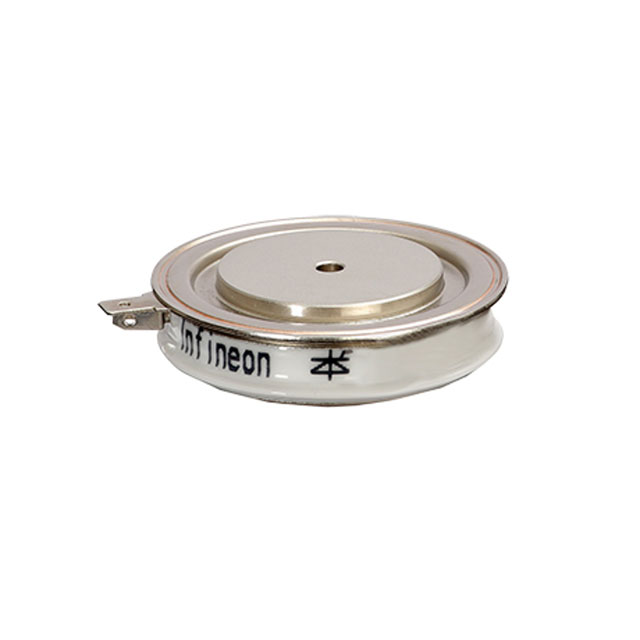

1600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 48 MM DIA AND A HEIGHT OF 14 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T640N16TOFXPSA1

Active

Infineon Technologies

1600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 48 MM DIA AND A HEIGHT OF 14 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T640N16TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9400 A
Current - On State (It (AV)) (Max) [Max]	644 A
Current - On State (It (RMS)) (Max) [Max]	1250 A
Mounting Type	Clamp On
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	DO-200AA, A-PUK
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	1.8 kV

T640N16 Series

Part	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Mounting Type	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Number of SCRs, Diodes
Infineon Technologies T640N16TOFXPSA1	1.8 kV	644 A	1250 A	Clamp On	Single	2.2 V	125 °C	-40 °C	300 mA	9400 A	250 mA	A-PUK DO-200AA	1 SCR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 103.00
		5	$ 103.00
Digikey	Tray	1	$ 126.82
		12	$ 109.69
Newark	Each	1	$ 159.70

Description

General part information

T640N16 Series

The T640NPhase Control Thyristor discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 48mm and a height of 14mm.
