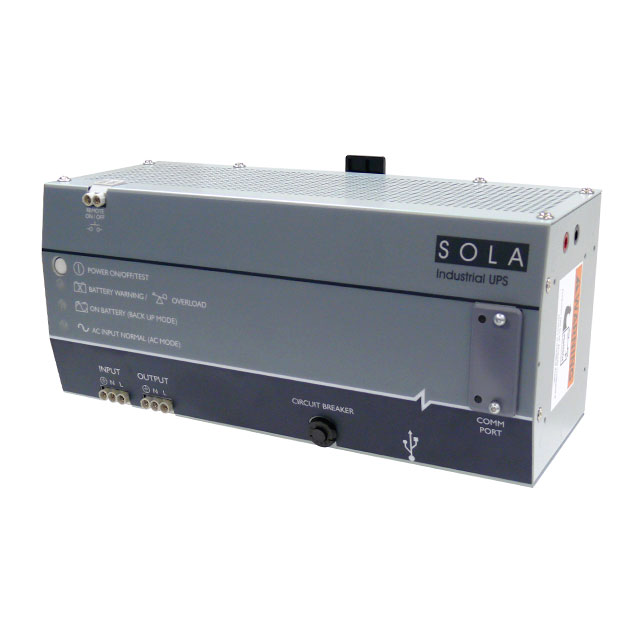

SDU500A

Obsolete

SolaHD

OFFLINE UPS 500VA 120V DIN A-SER

Search across all available documentation for this part.

Obsolete

SolaHD

OFFLINE UPS 500VA 120V DIN A-SER

Technical Specifications

Parameters and characteristics for this part

Specification	SDU500A

Applications	Industrial Control, General Purpose
Backup Time - Max Load	4 minutes
Form	Din Rail
Height	123.7 mm
Height [z]	4.87 "
Input Connector	Screw Terminals
Output Connector	Screw Terminals
Power - Rated	500 VA
Power - Rated	300 W
Size / Dimension [x]	4.815 in
Size / Dimension [x]	122.3 mm
Size / Dimension [y]	11.098 in
Size / Dimension [y]	281.9 mm
Type	Standby (No Regulation)

Part	Backup Time - Max Load	Output Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Applications	Input Connector	Height [z]	Height	Power - Rated	Power - Rated	Form
SolaHD SDU500A	4 minutes	Screw Terminals	4.815 in	11.098 in	281.9 mm	122.3 mm	Standby (No Regulation)	General Purpose Industrial Control	Screw Terminals	4.87 "	123.7 mm	500 VA	300 W	Din Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

OFFLINE UPS 500VA 120V DIN A-SER

Technical documentation and resources

No documents available
