106740-4
ActiveTE Connectivity AMP Connectors

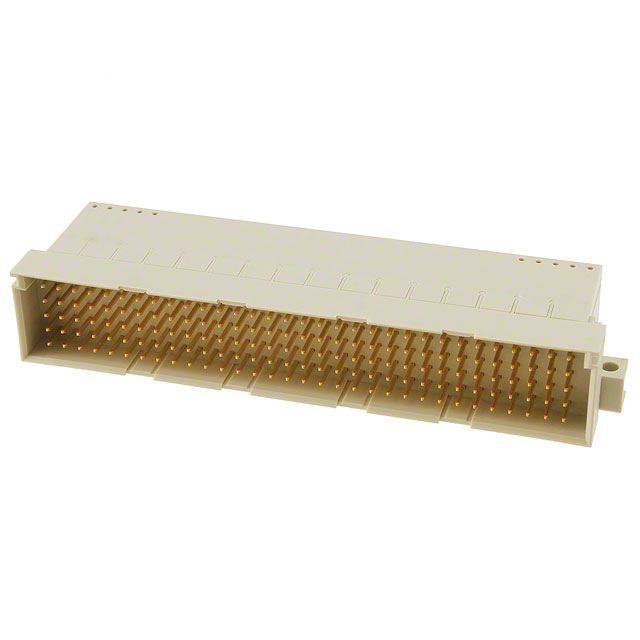

CONN DIN PLUG 160POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
106740-4
ActiveTE Connectivity AMP Connectors
CONN DIN PLUG 160POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 106740-4 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 µm |
| Contact Finish Thickness | 49.3 µin |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
106740 Series
CONN DIN PLUG 160POS
| Part | Number of Rows | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Termination | Material - Insulation | Number of Positions | Pitch [x] | Pitch [x] | Number of Positions Loaded | Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 106740-4 | 5 | Male Pins, Plug | 1.25 µm | 49.3 µin | Through Hole, Right Angle | Gold | Solder | Polyester Thermoplastic | 160 | 2.54 mm | 0.1 in | All | C | -55 °C | 125 °C |
Description
General part information
106740 Series
160 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
