R124312123

Active

Radiall USA, Inc.

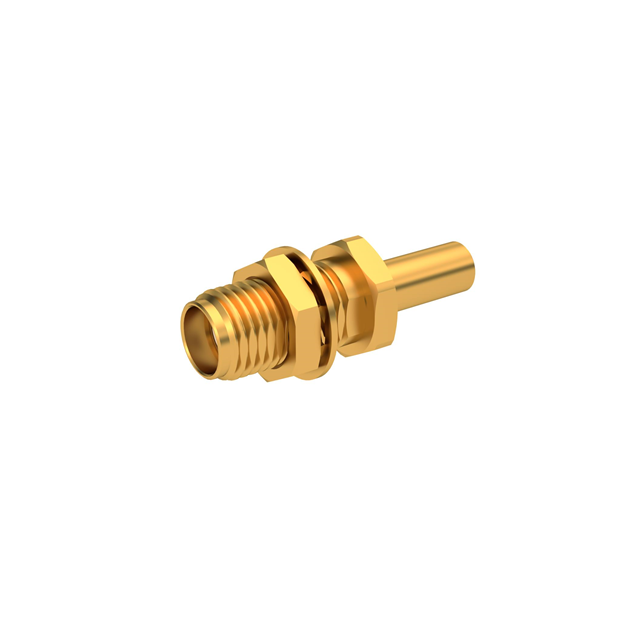

SMA / STRAIGHT BULKHEAD JACK FUL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK FUL

Technical Specifications

Parameters and characteristics for this part

Specification	R124312123

Body Finish	Gold
Body Material	Brass
Cable Group	AEP-100FR, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Number of Ports	Mounting Feature	Body Finish	Body Material	Dielectric Material	Impedance	Center Contact Material	Shield Termination	Cable Group	Contact Termination	Housing Color	Voltage Rating	Connector Type
Radiall USA, Inc. R124312123	Gold	12.4 GHz	-65 ░C	165 °C	SMA	1	Bulkhead - Front Side Nut	Gold	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper	Crimp	316 AEP-100FR RG-174	Crimp	Gold	500 V	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
