5406-2

Active

Pomona Electronics

BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 5 KV, GOLD PLATED CONTACTS, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5406-2

Active

Pomona Electronics

BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 5 KV, GOLD PLATED CONTACTS, RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5406-2

Body Material	Polypropylene (PP)
Color	Red
Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Cross Hole, Set Screw
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

5406 Series

Part	Plug/Mating Plug Diameter	Type	Mounting Type	Features	Body Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Contact Finish	Color	Operating Temperature	Gender	Insulation	Termination
Pomona Electronics 5406-2	Standard Banana	Banana Plug Stackable	Free Hanging (In-Line)	Cross Hole Set Screw	Polypropylene (PP)	22 AWG	17.5 AWG	Beryllium Copper	Gold	Red	50 °C	Male	Non-Mating End Insulated	Solderless

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.39
		25	$ 5.35
Newark	Each	1	$ 6.29
		25	$ 6.04
		50	$ 5.60
		100	$ 5.48
		200	$ 5.22
		500	$ 5.04

Description

General part information

5406 Series

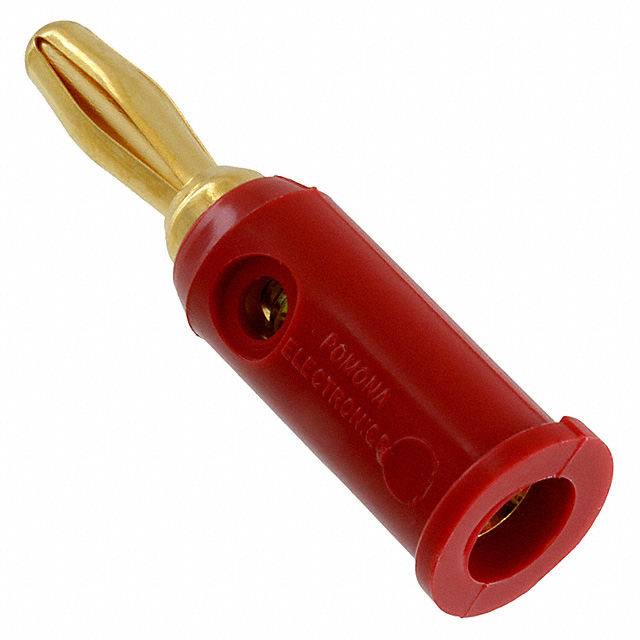

The 5406-2 is a red solderless and stackable Standard Banana Plug designed to fit on the end of any 22 to 18AWG wire. The cross-hole wire entry fits wires up to 0.12-inch diameter. The set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver. It fits standard panel and binding post banana jacks of 0.161 to 0.166-inch diameter. It is made of gold-plated brass body with gold-plated beryllium copper spring and polypropylene insulation.
