K10WBC-P16LBC0-0000

Active

ODU

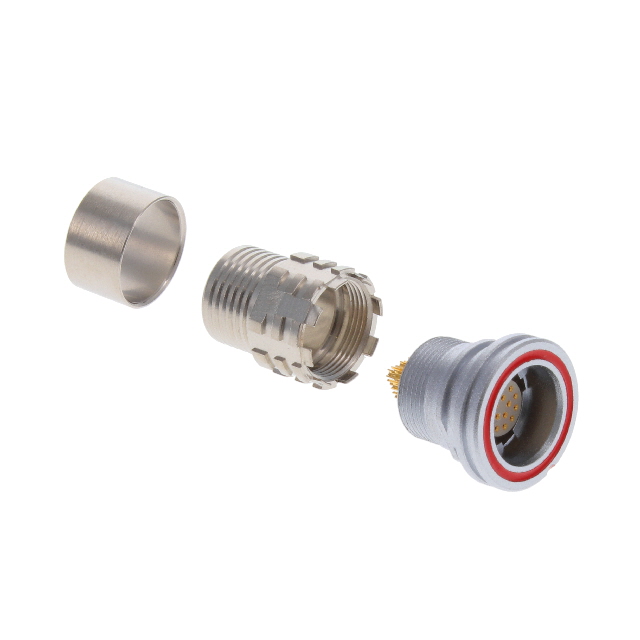

CONN RCPT FMALE 16POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 16POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	K10WBC-P16LBC0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	0.276 in
Cable Opening [custom]	7 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	250 VDC

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Ingress Protection	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Shielding	Applications	Color	Fastening Type	Mounting Type	Features	Number of Positions	Shell Material	Contact Finish - Mating	Voltage Rating	Shell Finish
ODU K10WBC-P16LBC0-0000	Metal	-51 °C	125 °C	B	0	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	0.276 in	7 mm	Shielded	Industrial Medical Military	Silver	Detent Lock Push-Pull	Free Hanging (In-Line)	Backshell	16	Brass	Gold	250 VDC	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 98.62

General part information

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
