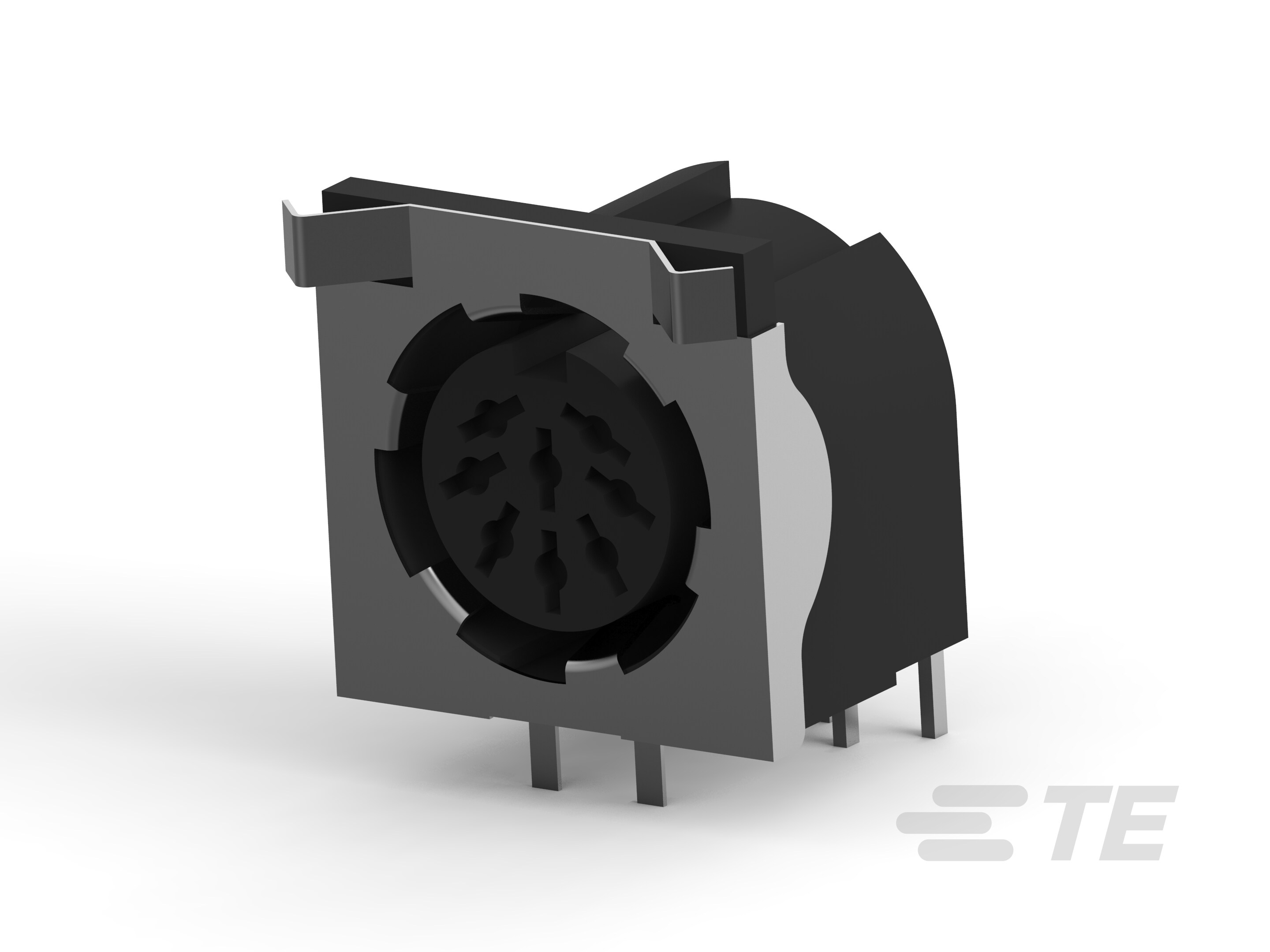

Specification	5787013-1

Applications	Audio
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100 µin
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Insert Material	Polycarbonate, PC
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert	DIN (270 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	250 V

5787013 Series

Part	Contact Finish Thickness - Mating	Insert Material	Current Rating	Shielding	Mounting Type	Contact Material	Number of Positions	Orientation	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Primary Material	Voltage Rating	Termination	Applications	Shell Material	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Connector Type
TE Connectivity AMP Connectors 5787013-1	100 µin	PC Polycarbonate	7.5 A	Shielded	Right Angle Through Hole	Brass	8	Keyed	Tin	Push-Pull	DIN (270 Degree)	Plastic	250 V	Solder	Audio	Nylon Polyamide (PA)	-55 °C	105 °C	UL94 V-0	Female Sockets Receptacle
