PKC.M0.7GL.NG

Active

LEMO

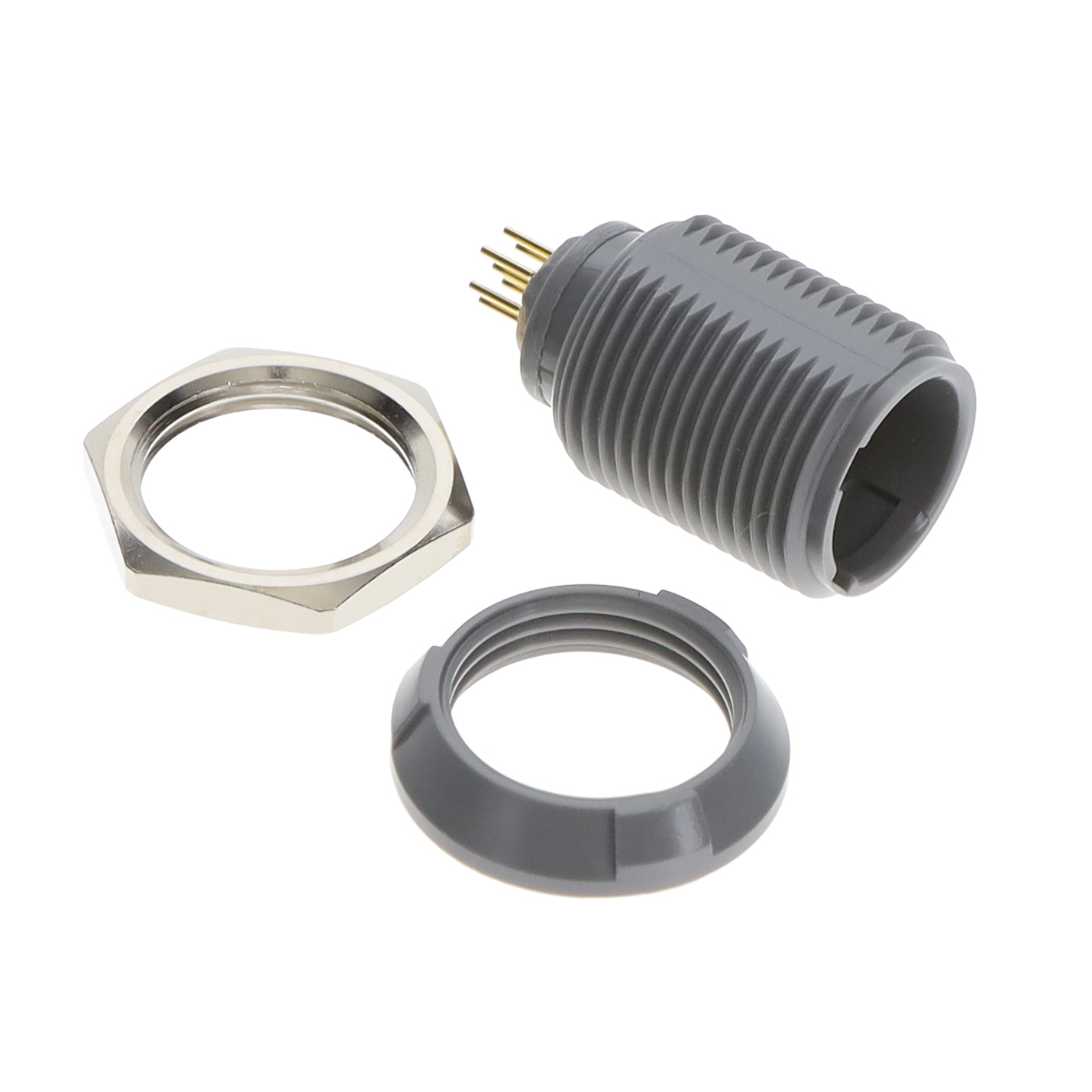

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKC.M0.7GL.NG

Active

LEMO

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.62
		10	$ 14.86

Description

General part information

PKC.M0 Series

7 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKC.M0.7GL.NG	PKC.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray, Blue, Green, Red
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	7	2 - 9
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	C	C
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	-	M09, M08, M06, M04, M02
Shielding	Unshielded	Unshielded
Termination	Solder	Solder

PKC.M0 Series

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Applications	Termination	Orientation	Mounting Type	Fastening Type	Connector Type	Ingress Protection	Mounting Feature	Shell Material	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shielding	Current Rating (Amps)	Primary Material	Insert Material	Shell Size - Insert
LEMO PKC.M0.7GL.NG	Automotive, Industrial, Medical, Testing Equipment & Measurement	Solder	C	Panel Mount, Through Hole	Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	7	Gray	150 °C	-50 °C	Gold	Unshielded	5 A	Plastic	Polyetheretherketone (PEEK)
LEMO PKC.M0.9GL.LG	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	9	Gray	150 °C	-50 °C	Gold	Unshielded	3 A	Plastic	Polyetheretherketone (PEEK)	M09
LEMO PKC.M0.8GL.NZ	Automotive, Industrial, Medical, Testing Equipment & Measurement	Solder	C	Panel Mount, Through Hole	Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	8	Gray	150 °C	-50 °C	Gold	Unshielded	5 A	Plastic	Polyetheretherketone (PEEK)	M08
LEMO PKC.M0.6GL.LZ	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	6	Gray	150 °C	-50 °C	Gold	Unshielded	6 A	Plastic	Polyetheretherketone (PEEK)	M06
LEMO PKC.M0.8GL.NN	Automotive, Industrial, Medical, Testing Equipment & Measurement	Solder	C	Panel Mount, Through Hole	Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	8		150 °C	-50 °C	Gold	Unshielded	5 A	Plastic	Polyetheretherketone (PEEK)	M08
LEMO PKC.M0.4NL.LJ	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	4		150 °C	-50 °C	Gold	Unshielded	8 A	Plastic	Polyetheretherketone (PEEK)	M04
LEMO PKC.M0.9GL.LZ	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	9	Gray	150 °C	-50 °C	Gold	Unshielded	3 A	Plastic	Polyetheretherketone (PEEK)	M09
LEMO PKC.M0.6GL.LA	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polysulfone (PSU)	6	Blue, Gray	150 °C	-50 °C	Gold	Unshielded	6 A	Plastic	Polyetheretherketone (PEEK)	M06
LEMO PKC.M0.2SL.NV	Automotive, Industrial, Medical, Testing Equipment & Measurement	Solder	C	Panel Mount, Through Hole	Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polyetherimide (PEI)	2	Gray, Green	170 °C	-50 °C	Gold	Unshielded	10 A	Plastic	Polyetheretherketone (PEEK)	M02
LEMO PKC.M0.6SL.LR	Automotive, Industrial, Medical, Testing Equipment & Measurement		C		Detent Lock, Push-Pull	Receptacle, Female Sockets	IP50	Front and Rear Side Nut	Polyetherimide (PEI)	6	Gray, Red	170 °C	-50 °C	Gold	Unshielded	6 A	Plastic	Polyetheretherketone (PEEK)	M06
