Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MT46H8M32LFB5-5 IT:H | MT46H8M32 Series |
|---|---|---|
| Access Time | 5 ns | 5 ns |
| Clock Frequency | 200 MHz | 166 - 200 MHz |
| Memory Format | DRAM | DRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 8 M | 8 M |
| Memory Size | 256 Gbit | 256 Gbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |

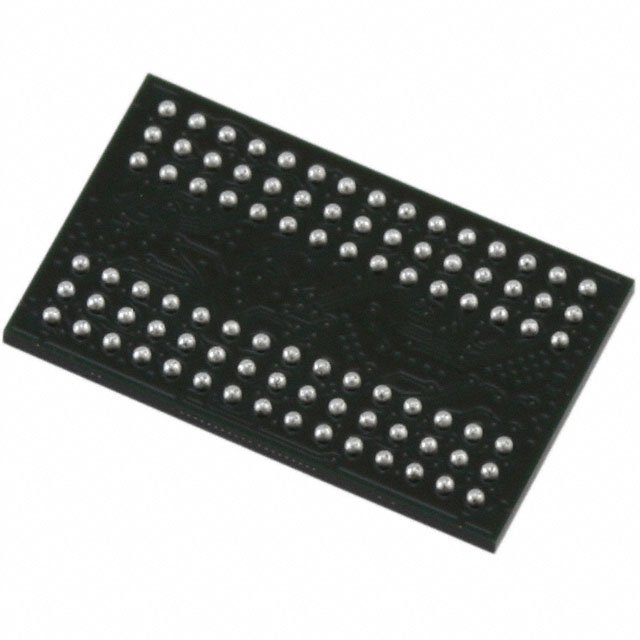

| Package / Case | 90-VFBGA | 90-VFBGA |
| Supplier Device Package | 90-VFBGA (8x13) | 90-VFBGA (8x13) |
| Technology | SDRAM - Mobile LPDDR | SDRAM - Mobile LPDDR |
| Voltage - Supply [Max] | 1.95 V | 1.95 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 V |
| Write Cycle Time - Word, Page | 15 ns | 12 - 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
MT46H8M32 Series
IC DRAM 256MBIT PAR 90VFBGA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Clock Frequency | Write Cycle Time - Word, Page | Technology | Access Time | Memory Size | Memory Interface | Memory Type | Memory Organization | Mounting Type | Memory Format | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micron Technology Inc. MT46H8M32LFB5-6 IT:HSDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 166 MHz 5 ns 90-VFBGA (8x13) | 85 °C | -40 °C | 1.7 V | 1.95 V | 90-VFBGA | 166 MHz | 12 ns | SDRAM - Mobile LPDDR | 5 ns | 256 Gbit | Parallel | Volatile | 8 M | Surface Mount | DRAM | 90-VFBGA (8x13) |
Micron Technology Inc. MT46H8M32LFB5-5 IT:HSDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 200 MHz 5 ns 90-VFBGA (8x13) | 85 °C | -40 °C | 1.7 V | 1.95 V | 90-VFBGA | 200 MHz | 15 ns | SDRAM - Mobile LPDDR | 5 ns | 256 Gbit | Parallel | Volatile | 8 M | Surface Mount | DRAM | 90-VFBGA (8x13) |
Micron Technology Inc. MT46H8M32LFB5-6 IT:A TRSDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 166 MHz 5 ns 90-VFBGA (8x13) | 85 °C | -40 °C | 1.7 V | 1.95 V | 90-VFBGA | 166 MHz | 12 ns | SDRAM - Mobile LPDDR | 5 ns | 256 Gbit | Parallel | Volatile | 8 M | Surface Mount | DRAM | 90-VFBGA (8x13) |
Micron Technology Inc. MT46H8M32LFB5-6:HSDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 166 MHz 5 ns 90-VFBGA (8x13) | 70 °C | 0 °C | 1.7 V | 1.95 V | 90-VFBGA | 166 MHz | 12 ns | SDRAM - Mobile LPDDR | 5 ns | 256 Gbit | Parallel | Volatile | 8 M | Surface Mount | DRAM | 90-VFBGA (8x13) |
Description
General part information
MT46H8M32 Series
SDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 200 MHz 5 ns 90-VFBGA (8x13)
