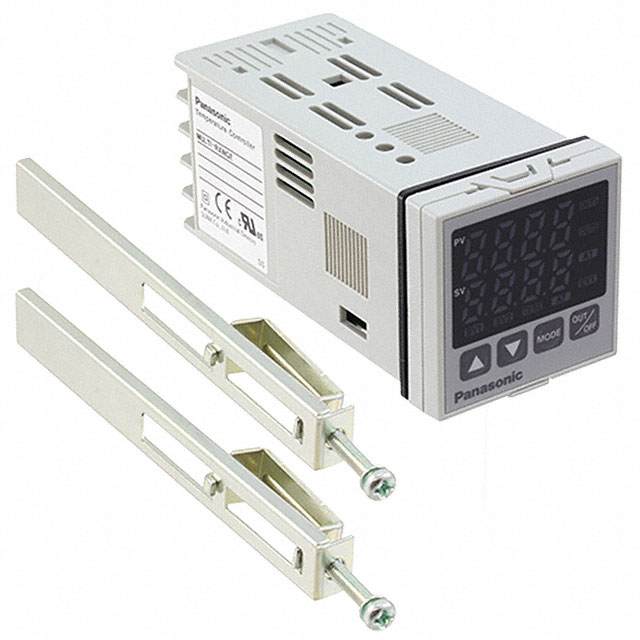

AKT41111011

Obsolete

Panasonic Industrial Automation Sales

CONTROL TEMP/PROCESS 100-240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AKT41111011

Obsolete

Panasonic Industrial Automation Sales

CONTROL TEMP/PROCESS 100-240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKT41111011

Communications	RS-485 (Modbus)
Control Method	On/Off, Proportional (PID)
Display Characters - Height	8.8 mm, 10.2 mm
Display Characters - Height [Max]	0.401 in
Display Characters - Height [Min]	0.347 in
Display Type	LED - Dual Color Characters
Features	Heater Fault Detection
Ingress Protection	IP66
Input Range [Max]	20 mA, 10 V, 2315 °C
Input Range [Min]	0 V, 0 A, -328 °F
Number of Characters Per Row	4
Number of Characters Per Row	4
Output Type	Relay (3)
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	K, S, C, R, Type B, T, J, PLII, E, N, Process, Temperature Controller, RTD
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	130.18 g
Weight	0.287 lb

AKT411 Series

Part	Features	Input Range [Max]	Input Range [Min]	Display Type	Control Method	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Termination Style	Ingress Protection	Communications	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Display Characters - Height [Max]	Display Characters - Height	Display Characters - Height [Min]	Weight	Weight
Panasonic Industrial Automation Sales AKT41111041	Heater Fault Detection	10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66	RS-485 (Modbus)	4	4	100 VAC	240 VAC	Relay (3)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT41131401		10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66	RS-485 (Modbus)	4	4	100 VAC	240 VAC	Analog Relay Solid State	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT4112140		10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66		4	4	100 VAC	240 VAC	Relay Solid State Voltage (External SSR)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT4113100		10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66		4	4	100 VAC	240 VAC	Analog Relay	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT4112103	Heater Fault Detection	10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66		4	4	100 VAC	240 VAC	Relay (2) Voltage (External SSR)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT4111200		10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66		4	4	100 VAC	240 VAC	Relay (2)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT41111021	Heater Fault Detection	10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66	RS-485 (Modbus)	4	4	100 VAC	240 VAC	Relay (3)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT41111011	Heater Fault Detection	10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66	RS-485 (Modbus)	4	4	100 VAC	240 VAC	Relay (3)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT41121041	Heater Fault Detection	10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66	RS-485 (Modbus)	4	4	100 VAC	240 VAC	Relay (2) Voltage (External SSR)	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb
Panasonic Industrial Automation Sales AKT4113140		10 V 20 mA 2315 °C	-328 °F 0 V 0 A	LED - Dual Color Characters	On/Off Proportional (PID)	45 mm	45 mm	C E J K N PLII Process Temperature Controller R RTD S T Type B	Screw Terminal	IP66		4	4	100 VAC	240 VAC	Analog Relay Solid State	0.401 in	8.8 mm 10.2 mm	0.347 in	130.18 g	0.287 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AKT411 Series

Process, Temperature Controller (RTD, Type B, C, E, J, K, N, PLII, R, S, T) 100 ~ 240VAC Panel Mount
