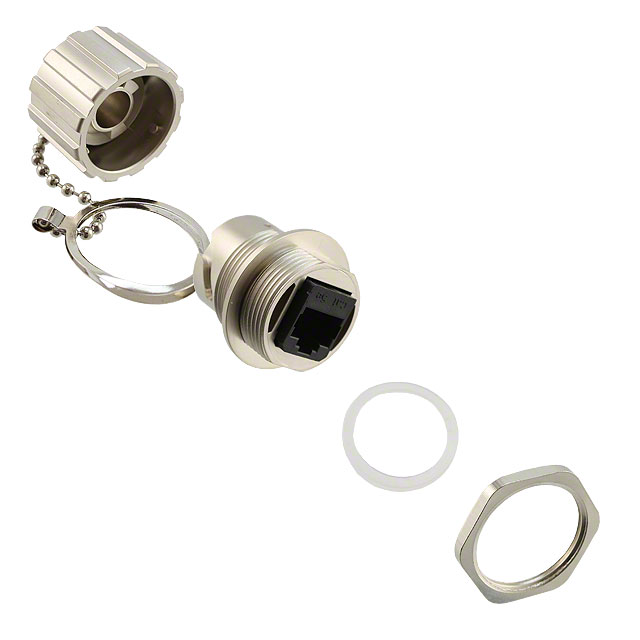

17-101824

Active

Amphenol CONEC

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-101824

Active

Amphenol CONEC

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-101824

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Cap (Cover), Industrial Environments, Circular Threaded Coupling
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Nickel Plated, Copper Alloy
Shielding	Unshielded
Type	Coupler

17-1018 Series

Part	Housing Material	Ingress Protection	Contact Material	Mounting Type	Tab Direction	Shielding	Number of Ports	Termination	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Ratings	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish	Number of Positions/Contacts	LED Color	Orientation	Mounting Feature	Convert From (Adapter End)	Type	Shell Material, Finish	Convert To (Adapter End)
Amphenol CONEC 17-101834	Zinc Die Cast Nickel Plated	IP67 - Dust Tight Waterproof	Phosphor Bronze	Bulkhead Panel Mount	User Selectable	Shielded	1	Color Coded Block IDC	Jack	50 µin	1.27 µm	Cat5e	1	85 °C	-40 °C	Circular Bayonet Coupling Cover	Gold	8p8c (RJ45 Ethernet)	Does Not Contain LED	Straight
Amphenol CONEC 17-101884	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Phosphor Bronze	Bulkhead Panel Mount		Shielded				50 µin	1.27 µm	Cat5e		85 °C	-40 °C	Cap (Cover) Circular Threaded Coupling Industrial Environments	Gold				Front Side Nut	Jack 8p8c (RJ45)	Coupler	Copper Alloy Nickel Plated	8p8c (RJ45) Jack
Amphenol CONEC 17-101844	Zinc Die Cast Nickel Plated	IP67 - Dust Tight Waterproof	Phosphor Bronze	Bulkhead Panel Mount	User Selectable	Shielded	1	PC Board Solder	Jack	50 µin	1.27 µm	Cat5e	1	85 °C	-40 °C	Circular Bayonet Coupling Cover	Gold	8p8c (RJ45 Ethernet)	Does Not Contain LED	Straight
Amphenol CONEC 17-101824	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Phosphor Bronze	Bulkhead Panel Mount		Unshielded				50 µin	1.27 µm	Cat5e		85 °C	-40 °C	Cap (Cover) Circular Threaded Coupling Industrial Environments	Gold				Front Side Nut	Jack 8p8c (RJ45)	Coupler	Copper Alloy Nickel Plated	8p8c (RJ45) Jack
Amphenol CONEC 17-101894	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Phosphor Bronze	Bulkhead Panel Mount		Unshielded				50 µin	1.27 µm	Cat5e		85 °C	-40 °C	Cap (Cover) Circular Bayonet Coupling Industrial Environments	Gold				Front Side Nut	Jack 8p8c (RJ45)	Coupler	Copper Alloy Nickel Plated	8p8c (RJ45) Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 45.52
		10	$ 39.86
		25	$ 38.14
		50	$ 36.91
		100	$ 35.68
		250	$ 33.71

Description

General part information

17-1018 Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
