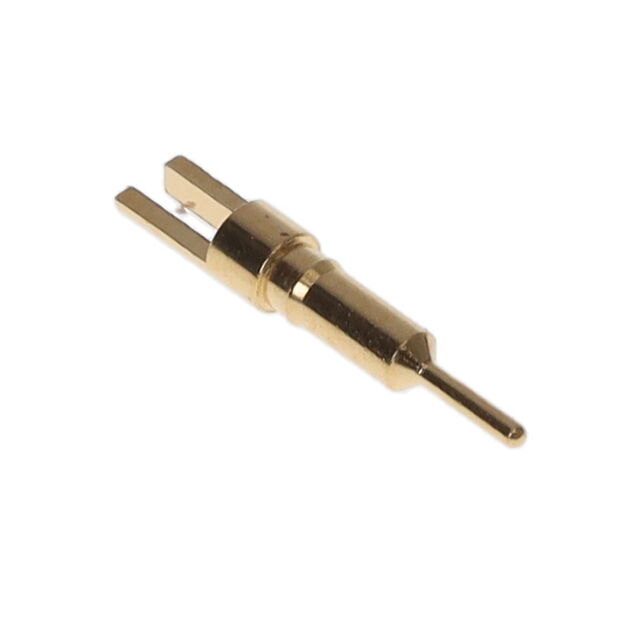

0265-0-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.072DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0265-0-01-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.99 mm |
| Length - Above Flange [x] | 0.157 in |
| Length - Below Flange [x] | 0.26 in |
| Length - Below Flange [x] | 6.6 mm |
| Length - Overall [x] | 10.59 mm |
| Length - Overall [x] | 0.417 " |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.83 mm |
| Pin Size - Above Flange [diameter] | 0.072 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.71 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.43 | |||
Description
General part information
0265-0 Series
PC Pin Terminal Connector Through Hole Gold 0.072" (1.83mm) Dia
