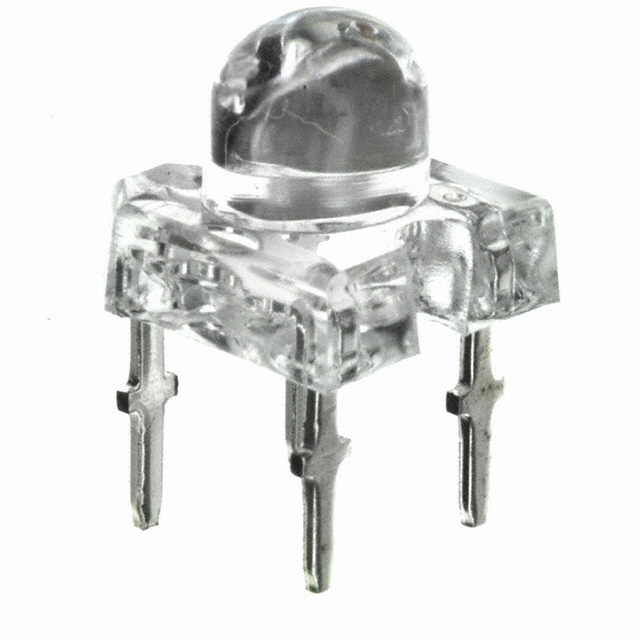

R50YLW-V-3045
ObsoleteBivar Inc.
LED YELLOW CLEAR T/H
R50YLW-V-3045
ObsoleteBivar Inc.
LED YELLOW CLEAR T/H
Description
General part information
R50YLW-V-3045 Series
Yellow 591nm LED Indication - Discrete 2.4V 4-DIP (0.200", 5.08mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | R50YLW-V-3045 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) | 8.6 mm |
| Lens Color | Colorless |
| Lens Diameter | 5.3 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 4000 mcd |
| Mounting Type | Through Hole |
| Package Length | 5.08 mm |
| Package Name | 4-DIP |
| Package Width | 5.08 mm |
| Size / Dimension Length | 7.6 mm |
| Size / Dimension Width | 7.6 mm |
| Viewing Angle (Horizontal) | 30 ° |
| Viewing Angle (Vertical) | 45 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength - Dominant | 591 nm |
