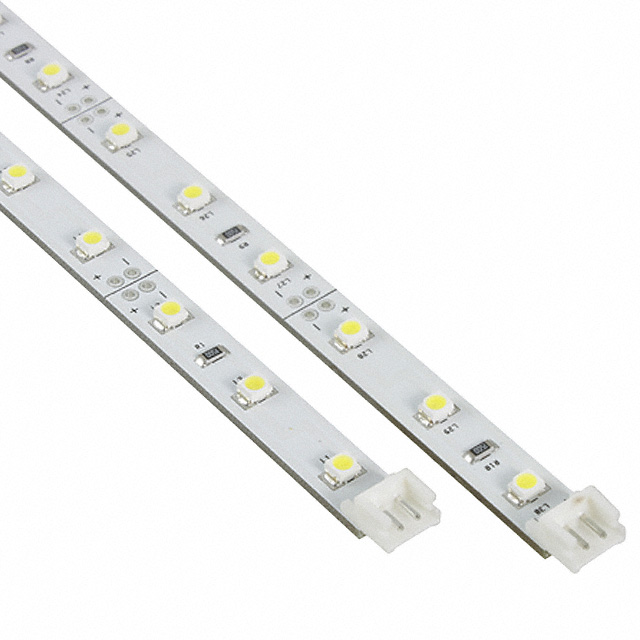

ZRS-8480-CW

Active

JKL Components Corp.

CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Search across all available documentation for this part.

Active

JKL Components Corp.

CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ZRS-8480-CW

Color	Cool, White
Configuration	Linear Light Strip
Current - Max [Max]	200 mA
Current - Test	200 mA
Features	With Connector
Height [z]	3.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	38 lm/W
Luminous Flux @ Current/Temperature	90 lm
Size / Dimension [x]	480 mm
Size / Dimension [y]	8 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V

Part	Color	Current - Test	Type	Size / Dimension [x]	Size / Dimension [y]	Features	Viewing Angle	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	CCT (K)	Luminous Flux @ Current/Temperature	Current - Max [Max]	Lumens/Watt @ Current - Test	Lens Type
JKL Components Corp. ZRS-8480-WW	Warm White	200 mA	LED Engine	485 mm	8 mm	With Connector	120 °	2.6 mm 3.6 mm	Linear Light Strip	12 V	3050 K	70 lm	200 mA	29 lm/W
JKL Components Corp. ZRS-8480-CW	Cool White	200 mA	LED Engine	480 mm	8 mm	With Connector	120 °	3.6 mm	Linear Light Strip	12 V		90 lm	200 mA	38 lm/W	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip
