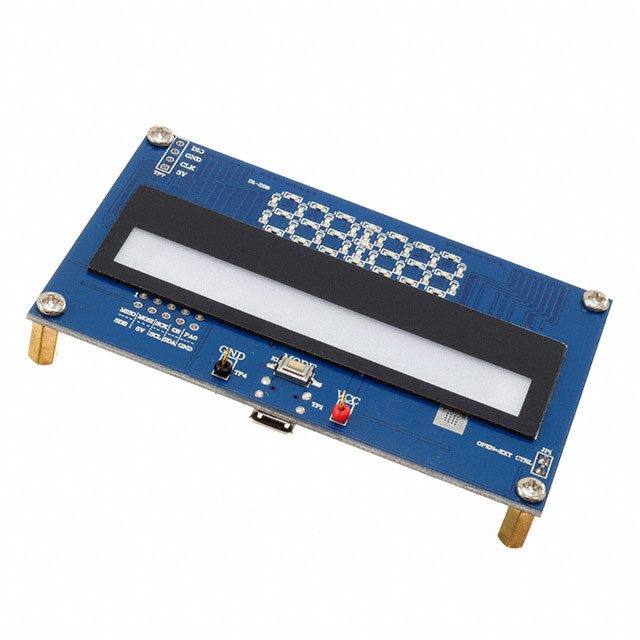

IS31FL3236A-QFLS2-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3236A

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3236A

Technical Specifications

Parameters and characteristics commom to parts in this series

IC LED DRVR LIN I2C 38MA 44QFN

Part	Mounting Type	Dimming	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Voltage - Supply (Max)	Number of Outputs	Applications	Supplier Device Package	Topology	Frequency	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Outputs and Type [custom]	Outputs and Type [custom]	Features	Supplied Contents
Lumissil Microsystems IS31FL3236-QFLS2-TR	Surface Mount	I2C	38 mA	85 °C	-40 °C	Linear	44-PowerWFQFN	5.5 V	36	Backlight	44-QFN (5x5)
Lumissil Microsystems IS31FL3236A-QFLS2-TR	Surface Mount		38 mA	85 C	-40 °C	Linear	44-PowerWFQFN	5.5 V	36		44-QFN (5x5)	Constant Current	3 kHz, 22 kHz
Lumissil Microsystems IS31FL3236A-QFLS2-EB			38 mA											IS31FL3236A	2.7 V	5.5 V	Board(s)	Non-Isolated Outputs	36	Dimmable
Lumissil Microsystems IS31FL3236A-QFLS2-EBCYCLE			38 mA											IS31FL3236A	2.7 V	5.5 V				Dimmable	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.71

General part information

IS31FL3236A - 36 Non-Isolated Outputs Dimmable LED Driver Evaluation Board

Technical documentation and resources

No documents available
