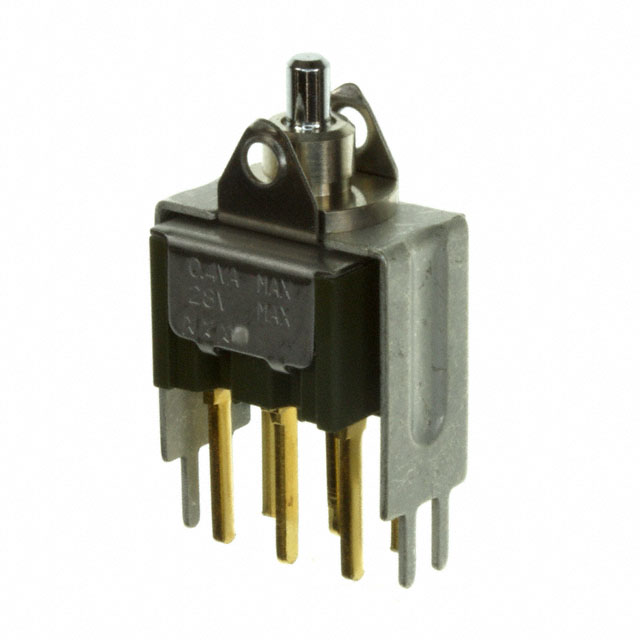

M2023TXG15

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2023TXG15

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2023TXG15

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2023TX Series

Part	Voltage Rating - AC	Mounting Type	Electrical Life	Approval Agency	Switch Function	Voltage Rating - DC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Actuator Marking	Current Rating (Amps)	Features	Color - Actuator/Cap
NKK Switches M2023TXG45-DH	28 V	Right Angle Through Hole Vertical	50000 Cycles	CSA UL	On-Off-On	28 V	Concave (Standard V)	-30 ░C	85 °C	DPDT	PC Pin	No Marking	0.4 VA	Epoxy Sealed Terminals
NKK Switches M2023TXW13	125 V	Through Hole	25000 Steps	CSA UL	On-Off-On	30 V	Actuator Arm Cap Required	-30 ░C	85 °C	DPDT	PC Pin	Varies by Cap	3 A 6 A	Epoxy Sealed Terminals
NKK Switches M2023TXG45	28 V	Right Angle Through Hole Vertical	50000 Cycles	CSA UL	On-Off-On	28 V	Actuator Arm Cap Required	-30 ░C	85 °C	DPDT	PC Pin	Varies by Cap	0.4 VA	Epoxy Sealed Terminals
NKK Switches M2023TXW13-DA	125 V	Through Hole	25000 Steps	CSA UL	On-Off-On	30 V	Concave (Standard V)	-30 ░C	85 °C	DPDT	PC Pin	No Marking	3 A 6 A	Epoxy Sealed Terminals	Black
NKK Switches M2023TXW13-DC	125 V	Through Hole	25000 Steps	CSA UL	On-Off-On	30 V	Concave (Standard V)	-30 ░C	85 °C	DPDT	PC Pin	No Marking	3 A 6 A	Epoxy Sealed Terminals	Red
NKK Switches M2023TXG30-FA	28 V	Through Hole Right Angle	50000 Cycles	CSA UL	On-Off-On	28 V	Concave (Standard V)	-30 ░C	85 °C	DPDT	PC Pin	No Marking	0.4 VA	Epoxy Sealed Terminals	Black
NKK Switches M2023TXG15	28 V	Through Hole	50000 Cycles	CSA UL	On-Off-On	28 V	Actuator Arm Cap Required	-30 ░C	85 °C	DPDT	PC Pin	Varies by Cap	0.4 VA	Epoxy Sealed Terminals
NKK Switches M2023TXW13-DB	125 V	Through Hole	25000 Steps	CSA UL	On-Off-On	30 V	Actuator Arm Cap Required	-30 ░C	85 °C	DPDT	PC Pin	Varies by Cap	3 A 6 A	Epoxy Sealed Terminals	White
NKK Switches M2023TXG41-DC	28 V	Right Angle Through Hole Vertical	50000 Cycles	CSA UL	On-Off-On	28 V	Concave (Standard V)	-30 ░C	85 °C	DPDT	PC Pin	No Marking	0.4 VA	Epoxy Sealed Terminals	Red
NKK Switches M2023TXG41	28 V	Right Angle Through Hole Vertical	50000 Cycles	CSA UL	On-Off-On	28 V	Actuator Arm Cap Required	-30 ░C	85 °C	DPDT	PC Pin	Varies by Cap	0.4 VA	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.66
		10	$ 9.61
		25	$ 9.20
		50	$ 8.75

Description

General part information

M2023TX Series

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
