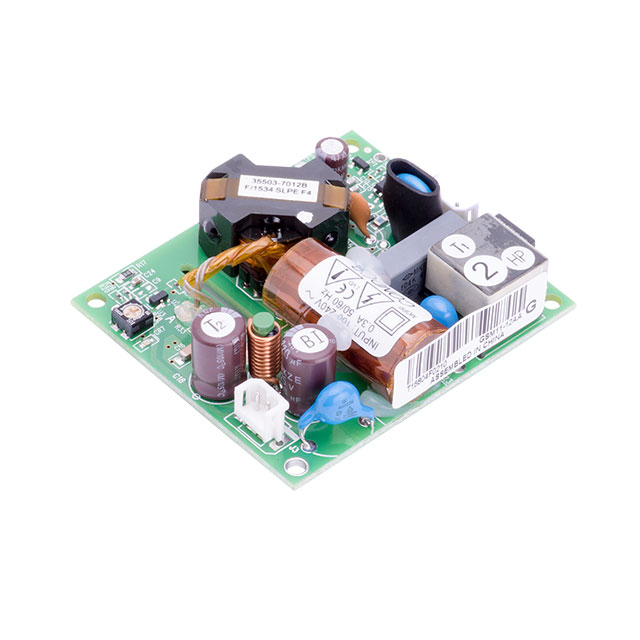

GSM11-24AAG

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 11W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 11W

Technical Specifications

Parameters and characteristics for this part

Specification	GSM11-24AAG

Applications	Medical
Current - Output 1	460 mA
Efficiency	77 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	11 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	14.3 mm
Size / Dimension [z]	0.56 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Features	Mounting Type	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Minimum Load Required	Power (Watts)
SL POWER / Advanced Energy GSM11-24AAG	70 °C	0 °C	460 mA	24 V	1	4000 V	Adjustable Output Universal Input	Chassis Mount	Medical	77 %	2 in	57.9 mm	2.28 in	14.3 mm	50.8 mm	0.56 "	Open Frame		11 W
SL POWER / Advanced Energy GSM11-12AAG	70 °C	0 °C	920 mA	12 V	1	4000 V	Adjustable Output Universal Input	Chassis Mount	Medical	77 %	2 in	57.9 mm	2.28 in	14.3 mm	50.8 mm	0.56 "	Open Frame		11 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
