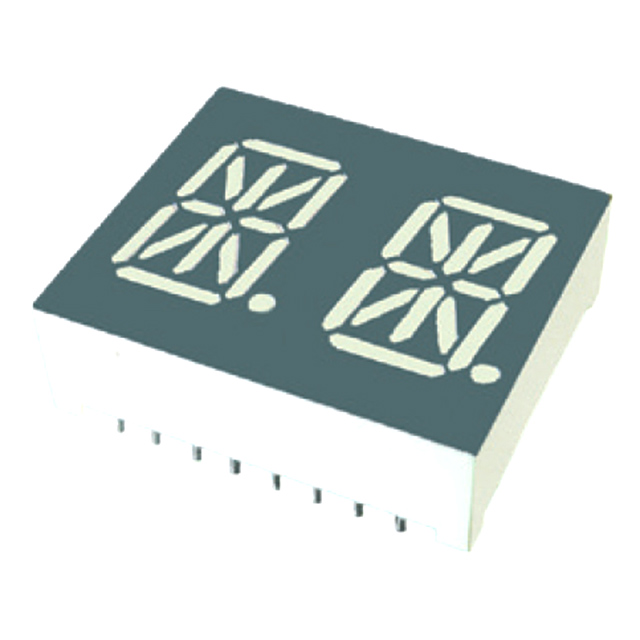

XAMR14C2

Obsolete

SunLED

DISP 14SEG 0.54" DBL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAMR14C2

Obsolete

SunLED

DISP 14SEG 0.54" DBL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XAMR14C2

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.54 in
Digit/Alpha Size	13.72 mm
Display Type	14-Segment, Alphanumeric
Millicandela Rating	6 mcd
Number of Characters	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	21.2 mm
Size / Dimension [x]	0.835 in
Size / Dimension [y]	0.992 "
Size / Dimension [y]	25.2 mm
Size / Dimension [z]	0.31 in
Size / Dimension [z]	7.8 mm
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Peak	655 nm

XAMR14 Series

Part	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Display Type	Common Pin	Wavelength - Peak	Number of Characters	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size
SunLED XAMR14C2	10 mA	1.8 V	75 mw	14-Segment Alphanumeric	Common Cathode	655 nm	2	Red	0.992 "	21.2 mm	0.835 in	0.31 in	25.2 mm	7.8 mm	15.24 mm	0.6 in	18-DIP	6 mcd	0.54 in	13.72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.38
		20	$ 3.81
		100	$ 3.12
		500	$ 2.63

Description

General part information

XAMR14 Series

Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 2 Character Common Cathode 1.8V 10mA 0.835" H x 0.992" W x 0.310" D (21.20mm x 25.20mm x 7.80mm) 18-DIP (0.600", 15.24mm)
