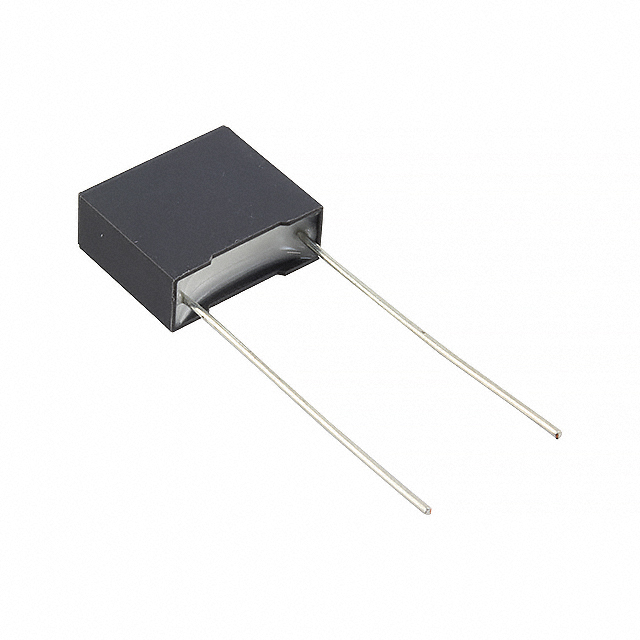

R60QI22205030K

Active

KEMET

CAP FILM 0.022UF 1000V PET 10%( 18 X 6 X 12MM) RADIAL WOUND 15MM 105°C BAG AUTOMOTIVE AEC-Q200

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.022UF 1000V PET 10%( 18 X 6 X 12MM) RADIAL WOUND 15MM 105°C BAG AUTOMOTIVE AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	R60QI22205030K

Applications	Automotive
Capacitance	0.022 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max] [z]	12.1 mm
Height - Seated (Max) [Max] [z]	0.476 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Voltage Rating - AC	Mounting Type	Termination	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Package / Case	Capacitance
KEMET R60QI22205030K	105 ░C	-55 °C	AEC-Q200	12.1 mm	0.476 "	Automotive	250 V	Through Hole	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	1 kVDC	1 kV	15 mm	0.591 in	0.709 in	0.236 in	18 mm	6 mm	10 %	Radial	0.022 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.022 µF Film Capacitor 250V 1000V (1kV) Polyester, Polyethylene Terephthalate (PET), Metallized Radial
