5430-1"X36YD

Unknown

3M (TC)

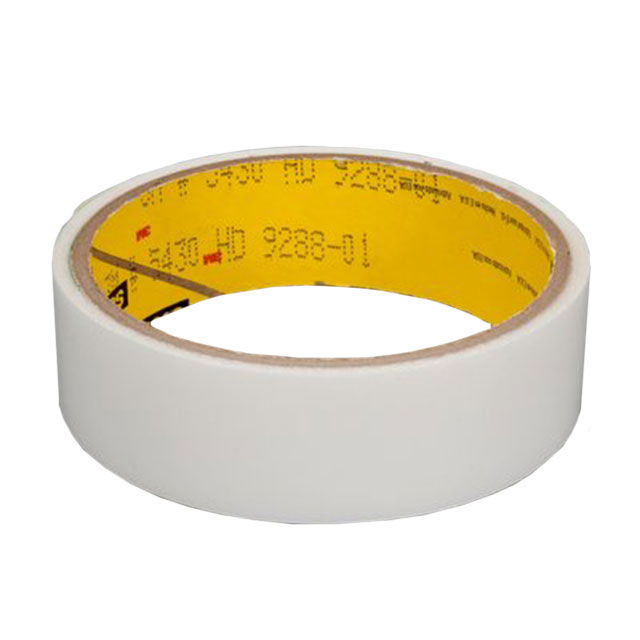

TAPE MASKING CLEAR 1"X36YDS

Search across all available documentation for this part.

Unknown

3M (TC)

TAPE MASKING CLEAR 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	5430-1"X36YD

Adhesive	Acrylic
Backing, Carrier	UHMW Polyethylene
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Masking
Temperature Range [Max]	107 °C
Temperature Range [Max]	225 °F
Temperature Range [Min]	-30 °F
Temperature Range [Min]	-34 °C
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	Automotive
Width [x]	25.4 mm
Width [x]	1 in

Part	Length	Length	Length	Width [x]	Width [x]	Tape Type	Backing, Carrier	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Adhesive	Shelf Life	Usage	Shelf Life Start	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]
3M (TC) 5430-1"X36YD	36 yd	32.9 m	108 ft	25.4 mm	1 in	Masking	UHMW Polyethylene	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F	Acrylic	18 Months	Automotive	Date of Manufacture	0.005 "	5 mils	0.127 mm	2 mils	0.051 mm	0.002 "
