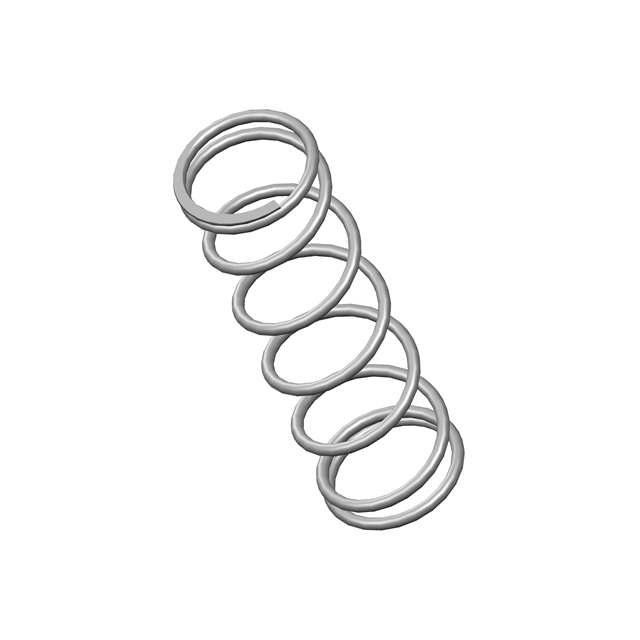

B10-66CS

Active

Century Spring Corp

COMP O= .437,L= 1.44,W= .037

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .437,L= 1.44,W= .037

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B10-66CS	B10 Series

Diameter - Inside [diameter]	0.363 in	0.234 - 0.969 in
Diameter - Inside [diameter]	9.22 mm	5.94 - 24.61 mm
Diameter - Outside [diameter]	0.437 "	0.328 - 1.219 "
Diameter - Outside [diameter]	11.1 mm	8.33 - 30.96 mm
End Style	Ground, Closed	Ground, Closed
Finish	Zinc	Zinc, None
Free Length	1.44 in	1 - 2 in
Free Length	36.58 mm	25.4 - 50.8 mm
Material	Spring Steel	Spring Steel, Stainless Steel
Rate	7.3 lbs/in	7.3 - 119 lbs/in
Type	-	Compression
Wire Diameter	-	0.047 in
Wire Diameter	-	1.19 mm
Wire Diameter [diameter]	0.037 "	0.037 - 0.125 "
Wire Diameter [diameter]	0.94 mm	0.94 - 3.18 mm

COMP O= .437,L= 1.44,W= .037

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Rate	Material	Free Length	Free Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Finish	Wire Diameter [diameter]	Wire Diameter [diameter]	End Style	Wire Diameter	Wire Diameter	Type
Century Spring Corp B10-66CS	0.437 "	11.1 mm	7.3 lbs/in	Spring Steel	1.44 in	36.58 mm	0.363 in	9.22 mm	Zinc	0.037 "	0.94 mm	Closed, Ground
Century Spring Corp B10-62CS	0.328 in	8.33 mm	29 lbs/in	Spring Steel	2 in	50.8 mm	0.234 in	5.94 mm	Zinc			Closed, Ground	0.047 in	1.19 mm	Compression
Century Spring Corp B10-8CS	1.219 in	30.96 mm	119 lbs/in	Stainless Steel	1 in	25.4 mm	0.969 in	24.61 mm	None	0.125 in	3.18 mm	Closed, Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

COMP O= .437,L= 1.44,W= .037
