B10-62CS

Active

Century Spring Corp

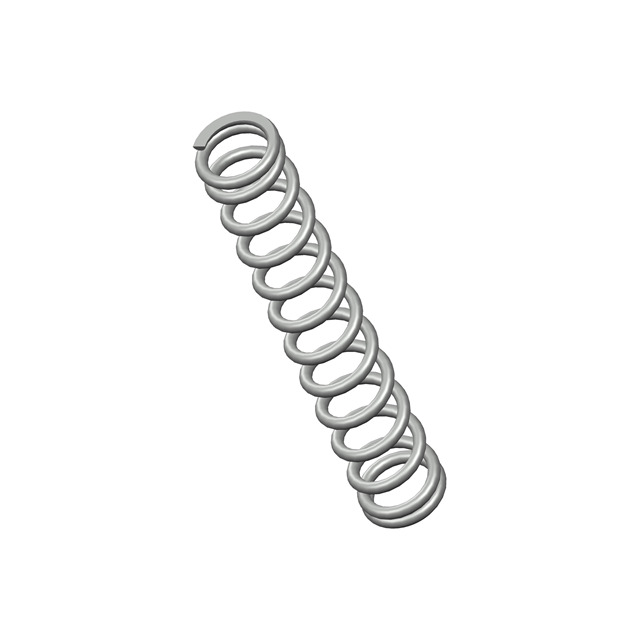

COMP SPRING STEEL 0.328" 2.000"

Search across all available documentation for this part.

Active

Century Spring Corp

COMP SPRING STEEL 0.328" 2.000"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

COMP SPRING STEEL 0.328" 2.000"

Technical documentation and resources

Specification	B10-62CS	B10 Series

Diameter - Inside [diameter]	0.234 in	0.234 - 0.969 in
Diameter - Inside [diameter]	5.94 mm	5.94 - 24.61 mm
Diameter - Outside [diameter]	8.33 mm	8.33 - 30.96 mm
Diameter - Outside [diameter]	0.328 in	0.328 - 1.219 "
End Style	Ground, Closed	Ground, Closed
Finish	Zinc	Zinc, None
Free Length	2 in	1 - 2 in
Free Length	50.8 mm	25.4 - 50.8 mm
Material	Spring Steel	Spring Steel, Stainless Steel
Rate	29 lbs/in	7.3 - 119 lbs/in
Type	Compression	Compression
Wire Diameter	0.047 in	0.047 in
Wire Diameter	1.19 mm	1.19 mm
Wire Diameter	-	0.037 - 0.125 "
Wire Diameter	-	0.94 - 3.18 mm

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Rate	Material	Free Length	Free Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Finish	Wire Diameter [diameter]	Wire Diameter [diameter]	End Style	Wire Diameter	Wire Diameter	Type
Century Spring Corp B10-66CS	0.437 "	11.1 mm	7.3 lbs/in	Spring Steel	1.44 in	36.58 mm	0.363 in	9.22 mm	Zinc	0.037 "	0.94 mm	Closed, Ground
Century Spring Corp B10-62CS	0.328 in	8.33 mm	29 lbs/in	Spring Steel	2 in	50.8 mm	0.234 in	5.94 mm	Zinc			Closed, Ground	0.047 in	1.19 mm	Compression
Century Spring Corp B10-8CS	1.219 in	30.96 mm	119 lbs/in	Stainless Steel	1 in	25.4 mm	0.969 in	24.61 mm	None	0.125 in	3.18 mm	Closed, Ground
