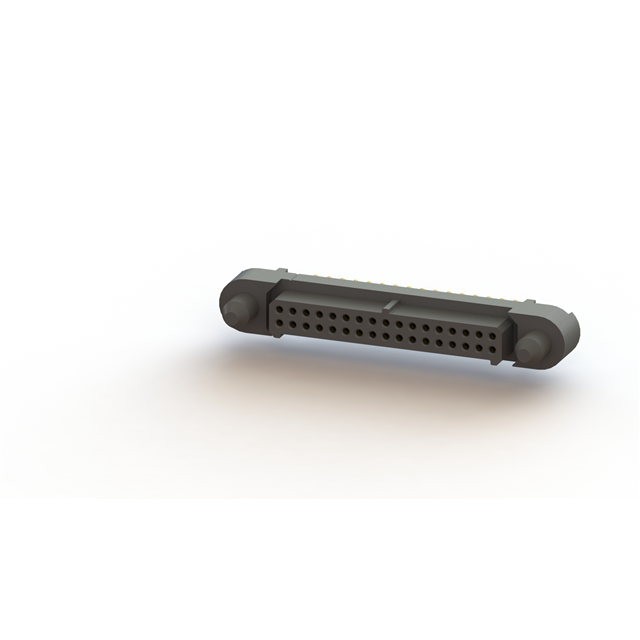

FEM. 34POS STRAIGHT TRGH 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

FEM. 34POS STRAIGHT TRGH 1.27MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Receptacle Connector 0.039" (1.00mm) Through Hole Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A222Y34R	A222Y34 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Length - Post	0.122 "	0.122 "
Contact Length - Post	3.1 mm	3.1 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2.5 A	2.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Guide Pin, Mating Guide	Polarizing Key, Mounting Flange, Jackscrews, Mating Flange, Guide Pin, Mating Guide
Insulation Color	Black	Black
Insulation Height	0.173 in	0.173 in
Insulation Height	4.4 mm	4.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	34	34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

FEM. 34POS STRAIGHT TRGH 1.27MM

Part	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Type	Contact Material	Connector Type	Contact Finish - Post	Number of Rows	Insulation Material	Contact Finish - Mating	Number of Positions	Termination	Number of Positions Loaded	Features	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Voltage Rating	Mounting Type	Fastening Type
Nicomatic A222Y34V16	0.122 "	3.1 mm	0.173 in	4.4 mm	0.039 "	1 mm	UL94 V-0	0.039 in	1 mm	0.15 µm	5.9 µin	Black	Female Socket	Copper Alloy	Receptacle	Gold	2	Liquid Crystal Polymer (LCP)	Gold	34	Solder	All	Jackscrews, Mating Flange, Mounting Flange, Polarizing Key	2.5 A	0.15 µm	5.9 µin	-65 ░C	200 °C	Circular	600 VAC	Through Hole
Nicomatic A222Y34R	0.122 "	3.1 mm	0.173 in	4.4 mm	0.039 "	1 mm	UL94 V-0	0.039 in	1 mm	0.15 µm	5.9 µin	Black	Female Socket	Copper Alloy	Receptacle	Gold	2	Liquid Crystal Polymer (LCP)	Gold	34	Solder	All	Guide Pin, Mating Guide	2.5 A	0.15 µm	5.9 µin	-65 ░C	200 °C	Circular	600 VAC	Through Hole	Push-Pull
