32S164-K00N1

Active

Rosenberger

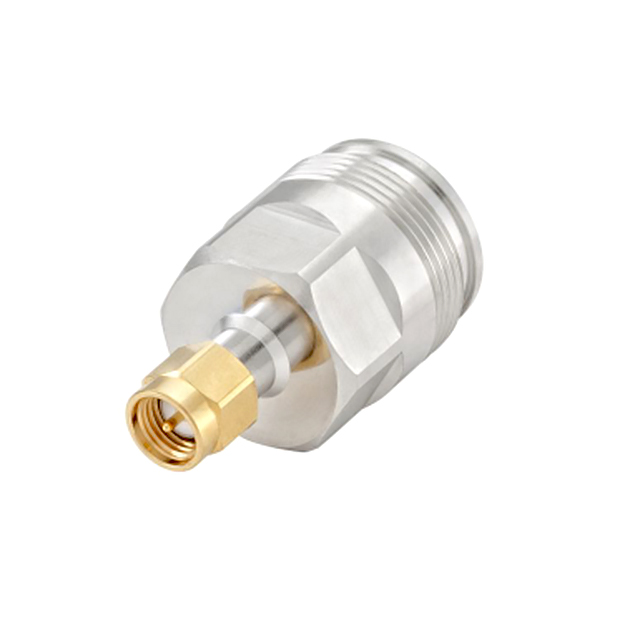

ADAPT SMA PLUG - 4.3/10 JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA PLUG - 4.3/10 JACK

Technical Specifications

Parameters and characteristics for this part

Specification	32S164-K00N1

Adapter Series	SMA to 4.3/10
Adapter Type	Plug to Jack
Body Finish	Silver, White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver, Gold
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Material	Center Contact Material	Conversion Type	Body Finish	Adapter Series	Convert To (Adapter End)	Dielectric Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Convert From (Adapter End)	Mounting Type	Impedance	Style	Frequency - Max [Max]
Rosenberger 32S164-K00N1	Brass	Beryllium Copper Brass	Between Series	Silver White Bronze	SMA to 4.3/10	Male Pin SMA Plug	Polytetrafluoroethylene (PTFE)	Gold Silver	90 °C	-55 °C	Plug to Jack	4.3/10 Jack Female Socket	Free Hanging (In-Line)	50 Ohms	Straight	12 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
