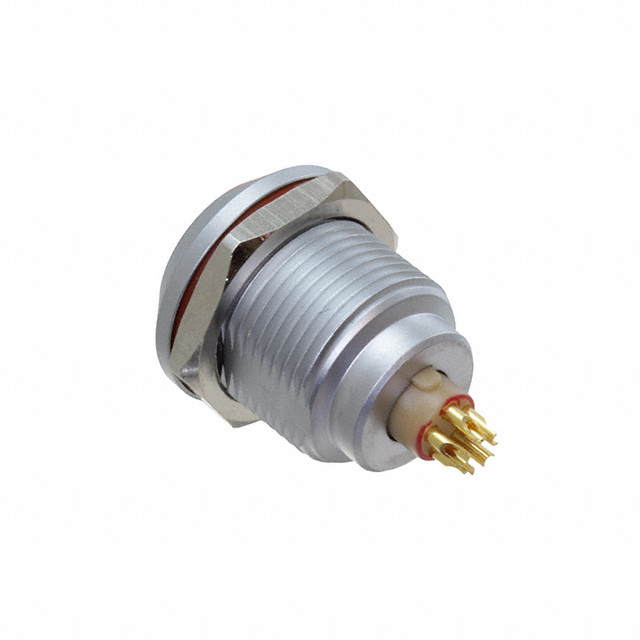

FLKC-05EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKC-05EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	9 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	C-5
Shielding	Shielded
Voltage Rating	400 V

Part	Mounting Feature	Applications	Current Rating (Amps)	Voltage Rating	Insert Material	Shell Size - Insert	Orientation	Ingress Protection	Shielding	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Contact Material	Shell Material	Fastening Type	Shell Finish	Color
Amphenol LTW FLKC-05EGFS-GCP-001	Bulkhead - Rear Side Nut	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	9 A	400 V	Polyphenylene Sulfide (PPS)	C-5	G	IP68 - Dust Tight Waterproof	Shielded	Gold	125 °C	-40 °C	Receptacle Female Sockets	Metal	Copper Alloy	Copper Alloy	Push-Pull	Chrome	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
