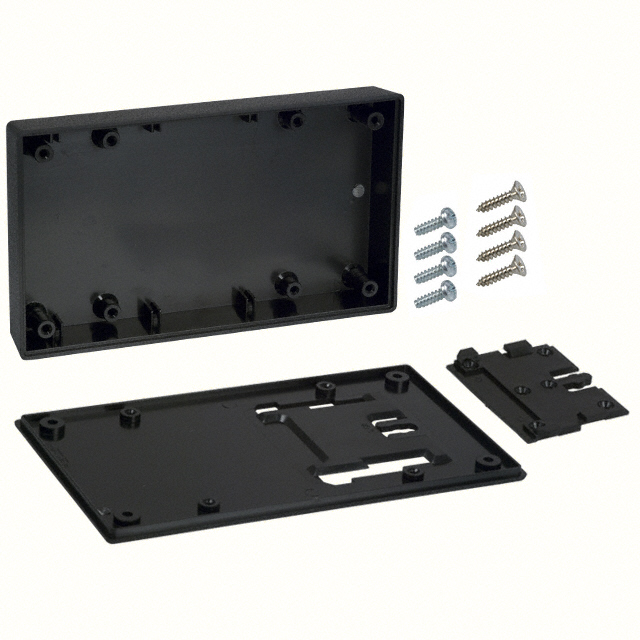

051W,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.07

General part information

Box Plastic, ABS Black Hand Held, Cover Included 5.620" L x 3.250" W (142.75mm x 82.55mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	051W,BK	051W Series

Area (L x W)	18.3 in²	18.3 in²
Area (L x W)	118 cm²	118 cm²
Color	Black	Gray, Black, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports, Wall Mount	PCB Supports, Wall Mount
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	142.75 mm	142.75 mm
Size / Dimension [x]	5.62 in	5.62 in
Size / Dimension [y]	3.25 "	3.25 "
Size / Dimension [y]	82.55 mm	82.55 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.187 lb	0.187 lb
Weight	84.82 g	84.82 g

BOX ABS GRAY 5.62"L X 3.25"W

Part	Area (L x W)	Area (L x W)	Ratings	Container Type	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Color	Material Flammability Rating	Height [z]	Height [z]	Material	Design
Serpac 051WI,GY	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Gray	UL94 HB	22.86 mm	0.9 in	Plastic, ABS
Serpac 051W,BK	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Black	UL94 HB	22.86 mm	0.9 in	Plastic, ABS	Cover Included, Hand Held
Serpac 051WI,BK	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Black	UL94 HB	22.86 mm	0.9 in	Plastic, ABS	Cover Included, Hand Held
Serpac 051W,GY	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Gray	UL94 HB	22.86 mm	0.9 in	Plastic, ABS
Serpac 051W,AL	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Almond	UL94 HB	22.86 mm	0.9 in	Plastic, ABS	Cover Included, Hand Held
Serpac 051WI,AL	18.3 in²	118 cm²	IP40, NEMA 1	Box	2.54 mm	0.1 in	PCB Supports, Wall Mount	3.25 "	142.75 mm	82.55 mm	5.62 in	0.187 lb	84.82 g	Almond	UL94 HB	22.86 mm	0.9 in	Plastic, ABS
