8023 000100

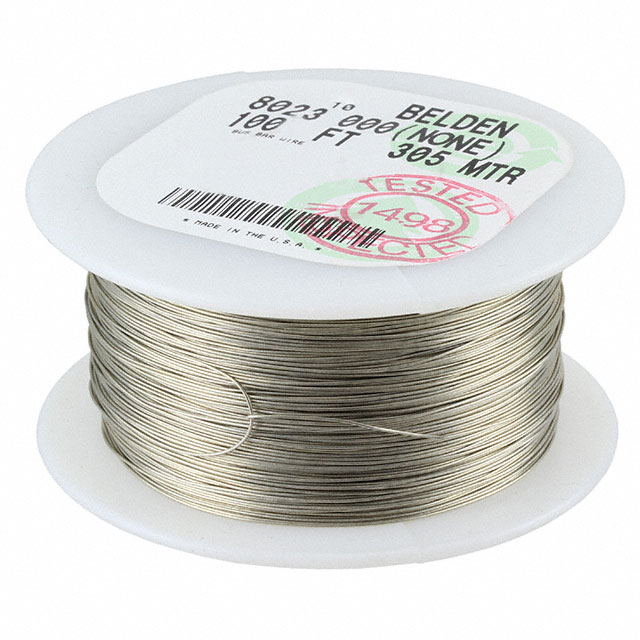

ActiveWIRE, BUS BAR, UNJACKETED, 26 AWG, 0.13 MM², 100 FT
Deep-Dive with AI
Search across all available documentation for this part.
8023 000100
ActiveWIRE, BUS BAR, UNJACKETED, 26 AWG, 0.13 MM², 100 FT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8023 000100 |
|---|---|
| Cable Type | Bus Bar |
| Conductor Material | Copper, Tinned |
| Conductor Strand | Solid |
| Jacket (Insulation) Material | No Jacketing - Bare Wire |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8023 Series
The 8023 000100 is a 100ft Hook-up/Lead Busbar Wire with 26AWG solid tinned copper conductors. Uses uni-strand tinned copper conductors, in this type of construction, the bare copper wires are stranded, then tinned to coat the strands and also to fill in the interstices between the strands. This allows for easier wire stripping with no re-twisting operation.
