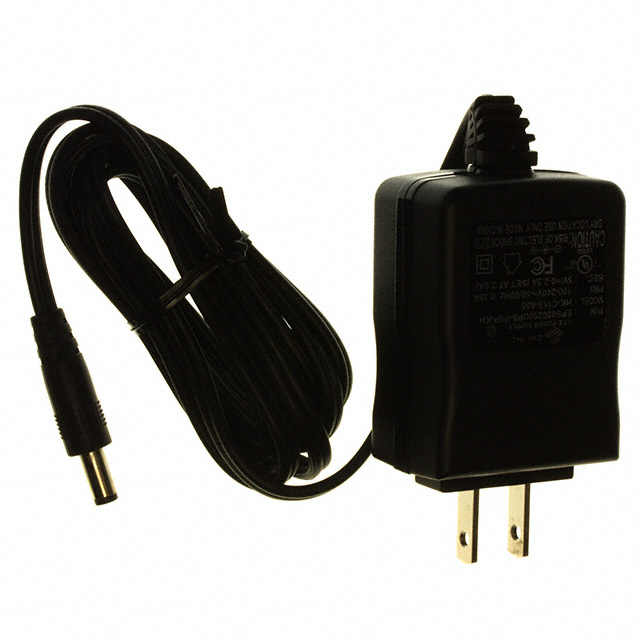

Specification	EPS050250UPS-P5P-KH

Applications	ITE (Commercial)
Approval Agency	cULus
Cord Length	70.9 in
Current - Output (Max)	2.5 A
Efficiency	Level IV
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption (Max)	500 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	12 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	13 W
Region Utilized	North America
Size / Dimension Height	2.43 in
Size / Dimension Length	1.18 in
Size / Dimension Width	1.77 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC

EPS050250 Series

Part	Cord Length	Input Connector	Input Type	Form	Current - Output (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Output Connector O.D.	Output Connector	Output Connector Length	Output Connector I.D.	Polarization	Approval Agency	Region Utilized	Efficiency	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output	Power (Watts)	No Load Power Consumption (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
CUI Inc. EPS050250UPS-P5P-KH	70.9 in	NEMA 1-15P	Fixed Blade	Wall Mount (Class II)	2.5 A	2.43 in	1.77 in	1.18 in	5.5 mm	Barrel Plug	12 mm	2.1 mm	Positive Center	cULus	North America	Level IV	ITE (Commercial)	40 °C	0 °C	5 VDC	13 W	500 mW	90 V	264 V
