A2MXS-2436G
ActiveTE Connectivity AMP Connectors
ADM24S/AE24G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

A2MXS-2436G
ActiveTE Connectivity AMP Connectors
ADM24S/AE24G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | A2MXS-2436G | A2MXS Series |
---|---|---|
Cable Termination | IDC | IDC |
Color | - | Ribbon, Multiple |
Connector Type | DIP to Cable | DIP to Cable |
Contact Finish | Tin | Tin |
Contact Finish Thickness | 2.54 µm | 2.54 µm |
Contact Finish Thickness | 100 µin | 100 µin |
Length | - | 152.4 mm |
Length | - | 6 " |
Length | - | 0.5 ' |
Length [x] | 3 ft | 1.5 - 3 ft |
Length [x] | 914.4 mm | 457.2 - 914.4 mm |
Number of Positions | 24 | 10 - 64 |
Number of Positions | - | 16 |
Number of Rows | 2 | 2 |
Pitch - Cable | 0.05 " | 0.05 " |
Pitch - Cable | 1.27 mm | 1.27 mm |
Pitch - Connector | 0.1 in | 0.1 in |
Pitch - Connector | 2.54 mm | 2.54 mm |
Shielding | Unshielded | Unshielded |
Usage | Board In, Socket (0.1") | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 3.50 | |
10 | $ 3.12 | |||
25 | $ 3.10 | |||
50 | $ 3.07 | |||
100 | $ 2.77 | |||
250 | $ 2.75 | |||
500 | $ 2.54 | |||
1000 | $ 2.27 | |||
2500 | $ 2.10 |
A2MXS Series
ADM64S/AE64M/X
Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch - Cable | Pitch - Cable | Contact Finish | Usage | Shielding | Pitch - Connector | Pitch - Connector | Color | Length | Length | Length | Connector Type | Number of Positions | Cable Termination | Length [x] | Length [x] | Number of Positions |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A2MXS-6406M | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | DIP to Cable | 64 | IDC | |||
TE Connectivity AMP Connectors A2MXS-2436G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 24 | IDC | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A2MXS-3406M | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | DIP to Cable | 34 | IDC | |||
TE Connectivity AMP Connectors A2MXS-1436G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 14 | IDC | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A2MXS-3418G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 34 | IDC | 1.5 ft | 457.2 mm | |||||
TE Connectivity AMP Connectors A2MXS-6418G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 64 | IDC | 1.5 ft | 457.2 mm | |||||
TE Connectivity AMP Connectors A2MXS-4018M | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | Multiple, Ribbon | DIP to Cable | 40 | IDC | 1.5 ft | 457.2 mm | ||||
TE Connectivity AMP Connectors A2MXS-2636G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 26 | IDC | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A2MXS-2606G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | DIP to Cable | 26 | IDC | ||||
TE Connectivity AMP Connectors A2MXS-4036G | 2 | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | Tin | Board In, Socket (0.1") | Unshielded | 0.1 in | 2.54 mm | DIP to Cable | 40 | IDC | 3 ft | 914.4 mm |
Description
General part information
A2MXS Series

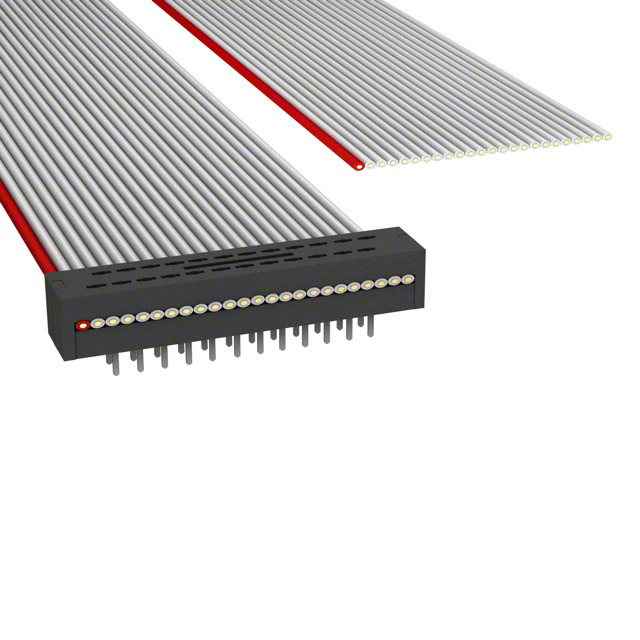

24 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
