TR9CI7500YL4IMR6B

Active

GlobTek, Inc.

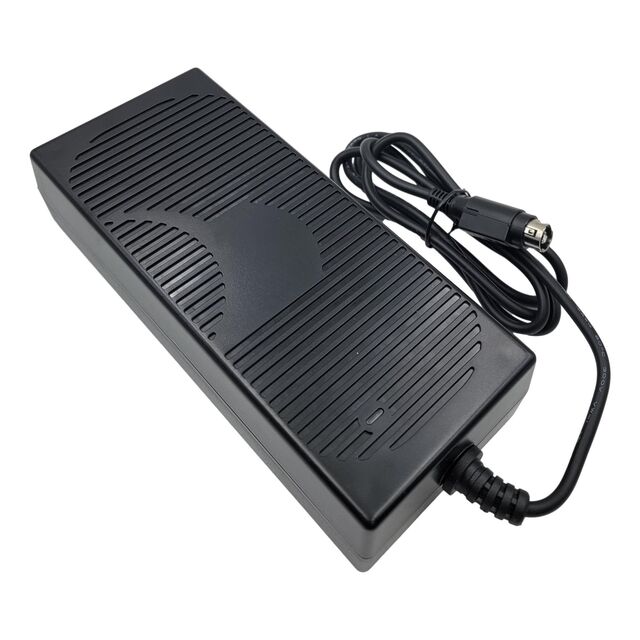

AC/DC DESKTOP ADAPTER 24V 180W

Deep-Dive with AI

Search across all available documentation for this part.

TR9CI7500YL4IMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CI7500YL4IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	7.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.95 in
Size / Dimension [x]	176.5 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

TR9CI7500 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Polarization	Cord Length	Cord Length	Input Connector	Form	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Output Connector	Output Connector [diameter]	Output Connector [z]	Region Utilized	Applications	Efficiency	Voltage - Output	Standard Number	Current - Output (Max) [Max]	Power (Watts)	No Load Power Consumption [Max]	Output Connector
GlobTek, Inc. TR9CI7500CCPIMR6B	90 VAC	264 VAC	Cord	Positive Center	1.2 m	47.2 in	IEC 320-C14	Desktop (Class I)	-10 °C	40 °C	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	Barrel Plug	2.1 mm 5.5 mm	11 mm	International	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	24 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	7.5 A	180 W	150 mW
GlobTek, Inc. TR9CI7500YL4CIMR6B	90 VAC	264 VAC	Cord		1.2 m	47.2 in	IEC 320-C14	Desktop (Class I)	-10 °C	40 °C	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	Power DIN			International	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	24 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	7.5 A	180 W	150 mW	4 Pin
GlobTek, Inc. TR9CI7500YL4CIMCFR6B	90 VAC	264 VAC	Cord		1.2 m	47.2 in	IEC 320-C14	Desktop (Class I)	-10 °C	40 °C	6.93 in	1.58 "	40 mm	2.91 "	74 mm	176 mm	Power DIN			International	Household Appliances ITE (Commercial) Medical	CoC Tier 1 Level VI	24 V	60335-1 60601-1 60950-1 62368-1	7.5 A	180 W	150 mW	4 Pin
GlobTek, Inc. TR9CI7500YL4IMR6B	90 VAC	264 VAC	Cord		1.2 m	47.2 in	IEC 320-C14	Desktop (Class I)	-10 °C	40 °C	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	Power DIN			International	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	24 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	7.5 A	180 W	150 mW	4 Pin
GlobTek, Inc. TR9CI7500LRPIMR6B	90 VAC	264 VAC	Cord	Positive Center	1.2 m	47.2 in	IEC 320-C14	Desktop (Class I)	-10 °C	40 °C	6.93 in	1.58 "	40 mm	2.91 "	74 mm	176 mm	Barrel Plug R/A	2.5 mm 5.5 mm	11 mm	International	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	24 V		7.5 A	180 W	150 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.07
		5	$ 60.75
		20	$ 56.52
		40	$ 54.51
		60	$ 53.37
		100	$ 51.97

Description

General part information

TR9CI7500 Series

24V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
