2903787

Active

Phoenix Contact

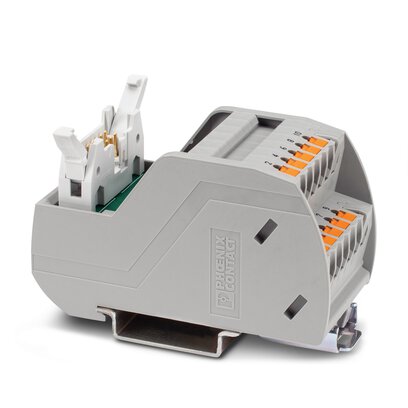

TERMINAL BLOCK INTERFACE MODULES VIP-2/PT/ FLK10

Search across all available documentation for this part.

Active

Phoenix Contact

TERMINAL BLOCK INTERFACE MODULES VIP-2/PT/ FLK10

Technical Specifications

Parameters and characteristics for this part

Specification	2903787

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	1 A
Length	1.449 in
Length	36.8 mm
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Positions / Poles	10
Process Side Connection	Terminal Blocks - Spring Connection
Voltage - Rated	60 VAC/DC
Width [y]	2.839 in
Width [y]	72.11 mm
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	14 AWG

Terminal Block Interface Modules VIP-2/PT/ FLK10

Part	Positions / Poles	Control Side Connection [custom]	Control Side Connection [custom]	Control Side Cable Retainer	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Process Side Connection	Wire Gauge [Max]	Wire Gauge [Min]	Voltage - Rated	Current Rating (Per Contact)	Width [y]	Width [y]
Phoenix Contact 2903787	10	Male	Rectangular	Latches	1.449 in	36.8 mm	50 °C	-20 C	Terminal Blocks - Spring Connection	26 AWG	14 AWG	60 VAC/DC	1 A	2.839 in	72.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Interface Modules VIP-2/PT/ FLK10
