Q-1U04E0003001M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U04E0003001M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U04E0003001M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms

Q-1U04E0 Series

Part	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	Cable Type	1st Connector	Features	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Feature	2nd Connector Mounting Feature	Overall Impedance	1st Contact Gender	Color	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1U04E0005108i	TNC Jack	Panel Mount	Female	RG-316	N-Type Jack	Shielded	Panel Mount	11 GHz	2.7 m	9 ft	108 in	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Copper
Amphenol Custom Cable Q-1U04E0003003M	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz	3 m	9.8 '	118.1 in	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black
Amphenol Custom Cable Q-1U04E0003.75M	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz	750 mm		29.53 "	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black
Amphenol Custom Cable Q-1U04E0003001M	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz	1 m	3.3 ft	39.4 in	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black
Amphenol Custom Cable Q-1U04E0003002M	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz	2 m	6.6 ft	78.7 in	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black
Amphenol Custom Cable Q-1U04E0005003M	TNC Jack	Panel Mount	Female	RG-316	N-Type Jack	Shielded	Panel Mount	11 GHz	3 m	9.8 '	118.1 in	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Copper
Amphenol Custom Cable Q-1U04E0003018i	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz				Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U04E0003.25M	TNC Jack	Panel Mount	Female	RG-174	N-Type Jack	Shielded	Panel Mount	11 GHz				Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	50 Ohms	Female	Black		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.56
		25	$ 103.57
		50	$ 101.58
		100	$ 99.59
		250	$ 97.59

Description

General part information

Q-1U04E0 Series

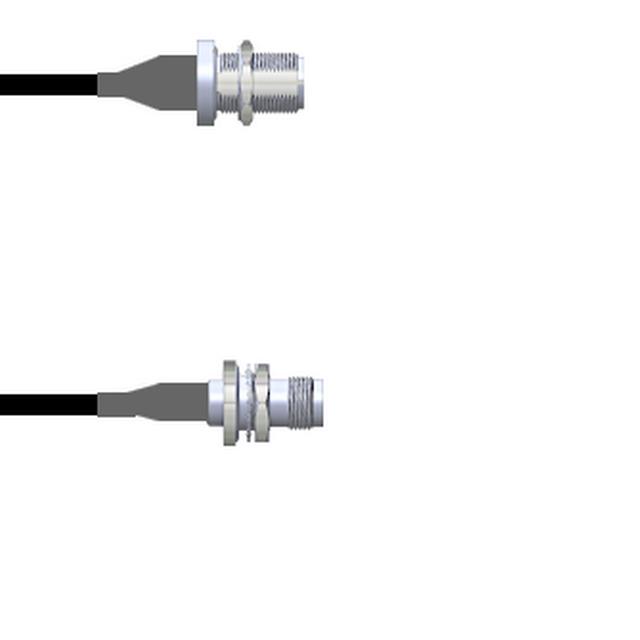

Cable Assembly Coaxial N-Type to TNC RG-174 39.4" (1.0m) 3.3'
