NL-SW-LTE-TC4APG

Active

NimbeLink, LLC

RF TXRX MODULE CELL/NAV U.FL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

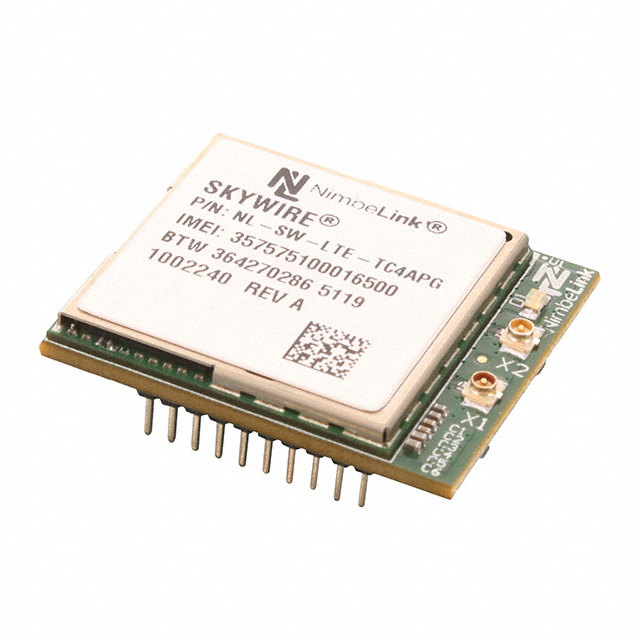

NL-SW-LTE-TC4APG

Active

NimbeLink, LLC

RF TXRX MODULE CELL/NAV U.FL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NL-SW-LTE-TC4APG	NL-SW-LTE Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL
Current - Receiving	-	1.5 A
Current - Transmitting	-	1.5 A
Data Rate	150 Mbps	150 - 375 Mbps
Frequency	-	1.7 - 2100 MHz
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 - -30 °C
Package / Case	20-DIP Module	20-DIP Module, Module
Power - Output	-	20 dBm
Protocol	GPS, GLONASS, LTE, HSPA+, Beidou, Galileo	4G LTE CAT-4 (Europe) 3G/2G Fallback, 4G LTE CAT-1 (Verizon), 4G LTE CAT NB-IoT, 4G LTE CAT M1/NB-IoT (Global), 2G Fallback, 4G LTE CAT-4 (Verizon), 3G Fallback, GPS, GLONASS, LTE, HSPA+, Beidou, Galileo
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-	-115 dBm
Serial Interfaces	UART, USB	UART, USB
Voltage - Supply [Max]	4.2 V	4.2 - 5.5 V
Voltage - Supply [Min]	3.4 V	3 - 3.5 V

NL-SW-LTE Series

RF TXRX MOD CELL U.FL TH

Part	Data Rate	RF Family/Standard	Serial Interfaces	Mounting Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Antenna Type	Current - Transmitting	Current - Receiving	Frequency	Sensitivity	Power - Output
NimbeLink, LLC NL-SW-LTE-TC4EU	150 Mbps	Cellular	UART, USB	Through Hole	20-DIP Module	4.3 V	3.5 V	85 °C	-40 °C	4G LTE CAT-4 (Europe) 3G/2G Fallback	Antenna Not Included, U.FL
NimbeLink, LLC NL-SW-LTE-GELS3-E		Cellular	UART, USB	Through Hole	20-DIP Module	5.5 V	3 V	85 °C	-30 ░C	4G LTE CAT-1 (Verizon)	Antenna Not Included, U.FL	1.5 A	1.5 A	1.7 GHz, 700 MHz
NimbeLink, LLC NL-SW-LTE-QBG95	375 kbps	Cellular	USB	Through Hole	Module	4.8 V	3.4 V	85 °C	-40 °C	4G LTE CAT NB-IoT	Antenna Not Included, U.FL			850 MHz, 900 MHz, 1800 MHz, 1900 MHz	-115 dBm	20 dBm
NimbeLink, LLC NL-SW-LTE-QBG96-B		Cellular, Navigation	UART, USB	Through Hole	20-DIP Module	4.3 V	3.4 V	85 °C	-40 °C	2G Fallback, 4G LTE CAT M1/NB-IoT (Global)	Antenna Not Included, U.FL			1.7 GHz, 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
NimbeLink, LLC NL-SW-LTE-S7588-V-B	150 Mbps	Cellular	UART, USB	Through Hole	20-DIP Module	5.5 V	3 V	85 °C	-40 °C	3G Fallback, 4G LTE CAT-4 (Verizon)	Antenna Not Included, U.FL			1.7 GHz, 700 MHz, 850 MHz, 1900 MHz
NimbeLink, LLC NL-SW-LTE-TC4APG	150 Mbps	Cellular, Navigation	UART, USB	Through Hole	20-DIP Module	4.2 V	3.4 V	85 °C	-40 °C	Beidou, Galileo, GLONASS, GPS, HSPA+, LTE	Antenna Not Included, U.FL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 138.00

Description

General part information

NL-SW-LTE Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, HSPA+, LTE Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz Antenna Not Included, U.FL Through Hole
