30-17 BLK

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 1A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 1A 115V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

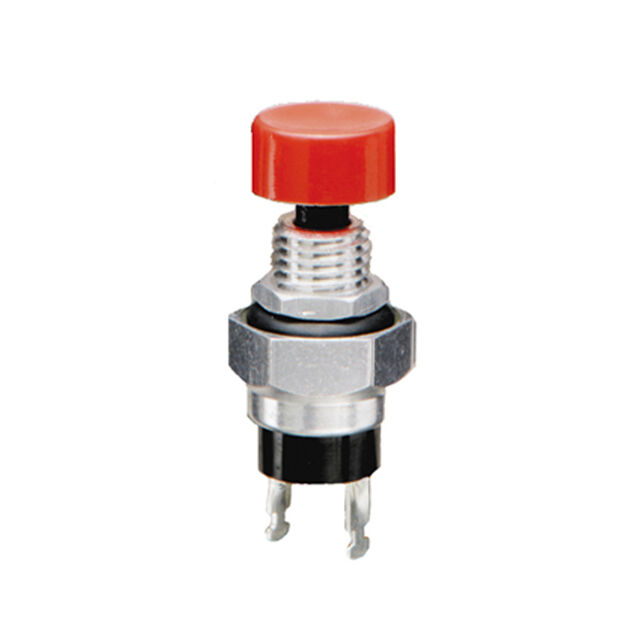

Pushbutton Switch SPST-NO Standard Panel Mount, Rear

Technical documentation and resources

Specification	30-17 BLK	30-17 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Black	Black, Red
Current Rating (Amps)	1 A	1 A
Electrical Life	200000 Cycles	200000 Cycles
Features	Tactile Feedback	Epoxy Sealed Terminals, Tactile Feedback
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	12.3 mm	12.3 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Wire Leads, Solder Lug
Type	Standard	Standard
Voltage Rating - AC	115 V	115 V

Part	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Termination Style	Electrical Life	Actuator Type	Features	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Current Rating (Amps)	Type	Mounting Type	Actuator Marking
Grayhill Inc. 30-17 BLK-EW	Black	12.3 mm	Wire Leads	200000 Cycles	Button, Round	Epoxy Sealed Terminals	115 V	85 °C	-40 °C	SPST-NO	Off-Mom	1 A	Standard	Panel Mount, Rear	No Marking
Grayhill Inc. 30-17 RED	Red	12.3 mm	Solder Lug	200000 Cycles	Button, Round	Tactile Feedback	115 V	85 °C	-40 °C	SPST-NO	Off-Mom	1 A	Standard	Panel Mount, Rear	No Marking
Grayhill Inc. 30-17 BLK	Black	12.3 mm	Solder Lug	200000 Cycles	Button, Round	Tactile Feedback	115 V	85 °C	-40 °C	SPST-NO	Off-Mom	1 A	Standard	Panel Mount, Rear	No Marking
