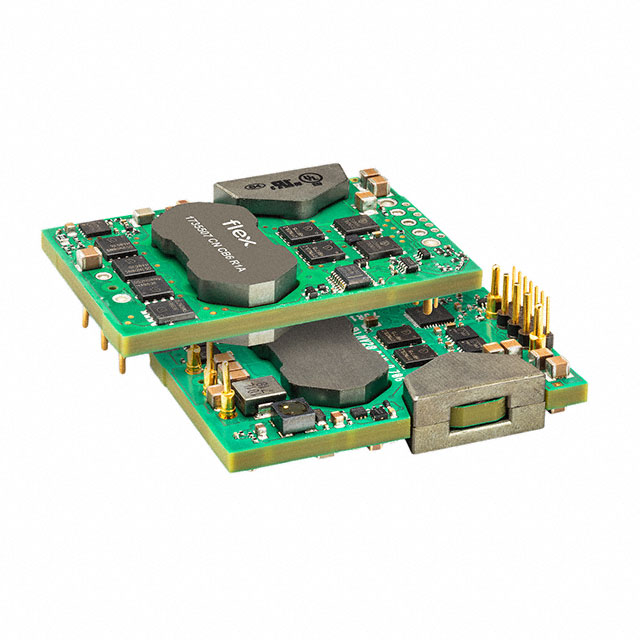

BMR4580102/003

Active

Flex Power Modules

DC DC CONVERTER 12V 600W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4580102/003

Active

Flex Power Modules

DC DC CONVERTER 12V 600W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 108.54
		5	$ 107.68
		20	$ 106.81
		40	$ 96.48
		80	$ 91.65

Description

General part information

BMR458 Series

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 50A 36V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4580102/003	BMR458 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	50 A	50 - 54.2 A
Efficiency	96.4 %	96.4 - 96.6 %
Features	Remote Sense, Baseplate, Remote On/Off, Adjustable Output, PMBus™	Load Sharing, PMBus™, Remote Sense, Remote On/Off, Adjustable Output, Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	600 W	600 - 670 W
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	13.2 mm	11.2 - 13.2 mm
Size / Dimension [z]	0.52 "	0.44 - 0.52 "
Standard Number	62368-1	62368-1
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Intermediate Bus Converter, Digital	Intermediate Bus Converter, Digital, Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V	60 - 75 V
Voltage - Input (Min) [Min]	36 V	36 - 40 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

BMR458 Series

DC DC CONVERTER 12.45V 670W

Part	Standard Number	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Supplier Device Package	Features	Current - Output (Max) [Max]	Voltage - Isolation	Control Features	Efficiency	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1
Flex Power Modules BMR4580011/017	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	670 W	Quarter Brick	Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in
Flex Power Modules BMR4580102/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580012/002	62368-1	36 V	75 V	Isolated Module, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL		Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense		2250 VDC	Active Low, Enable		1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580002/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580111/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable		1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580112/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580011/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580002/014	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	623 W	Quarter Brick	Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in
Flex Power Modules BMR4580103/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
