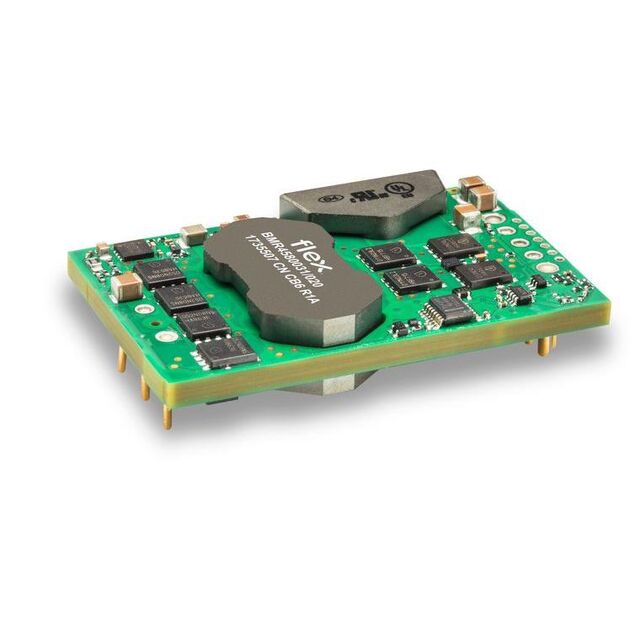

BMR4580012/002

Active

Flex Power Modules

DC DC CONVERTER 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4580012/002

Active

Flex Power Modules

DC DC CONVERTER 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4580012/002	BMR458 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max)	-	50 - 54.2 A
Efficiency	-	96.4 - 96.6 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Load Sharing, PMBus™, Remote Sense, Remote On/Off, Adjustable Output, Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	-	600 - 670 W
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	0.44 "	0.44 - 0.52 "
Size / Dimension [z]	11.2 mm	11.2 - 13.2 mm
Standard Number	62368-1	62368-1
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module, Digital	Intermediate Bus Converter, Digital, Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V	60 - 75 V
Voltage - Input (Min) [Min]	36 V	36 - 40 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

BMR458 Series

DC DC CONVERTER 12.45V 670W

Part	Standard Number	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Supplier Device Package	Features	Current - Output (Max) [Max]	Voltage - Isolation	Control Features	Efficiency	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1
Flex Power Modules BMR4580011/017	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	670 W	Quarter Brick	Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in
Flex Power Modules BMR4580102/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580012/002	62368-1	36 V	75 V	Isolated Module, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL		Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense		2250 VDC	Active Low, Enable		1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580002/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580111/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable		1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580112/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580011/002	62368-1	40 V	60 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	650 W	Quarter Brick	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	54.2 A	2250 VDC	Active Low, Enable	96.6 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	12 V
Flex Power Modules BMR4580002/014	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	623 W	Quarter Brick	Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in
Flex Power Modules BMR4580103/003	62368-1	36 V	75 V	Intermediate Bus Converter, Digital	Through Hole	Quarter Brick	125 °C	-40 °C	CB, CSA, IEC, TUV, UL	600 W	Quarter Brick	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	50 A	2250 VDC	Active Low, Enable	96.4 %	1	ITE (Commercial)	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 100.11

Description

General part information

BMR458 Series

Isolated Module, Digital DC DC Converter 1 Output 12V 36V - 75V Input
