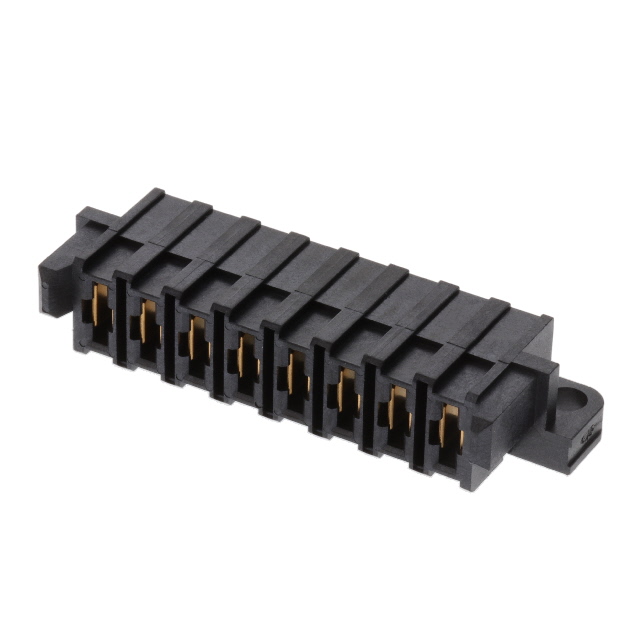

MPS-08-01-01-L-RA-SD - MPS-08-01-01-L-RA-SD

MPS-08-01-01-L-RA-SD

Active
Samtec Inc.

CONN RCPT 8POS 5.00MM R/A SLDR

Deep-Dive with AI

Documents5.00 mm PowerStrip™/30 A Dual Leaf Socket StripDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPS-08-01-01-L-RA-SD
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
Current Rating (Amps)30 A
FeaturesFlange
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions8
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]5 mm
Pitch [x]0.197 in
TerminationSolder
Voltage Rating812 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 7.64
10$ 7.06
25$ 6.72

Description

General part information

MPS-08 Series

Power to the Board 5.00 mm PowerStrip/30 A Dual Leaf Socket Strip
