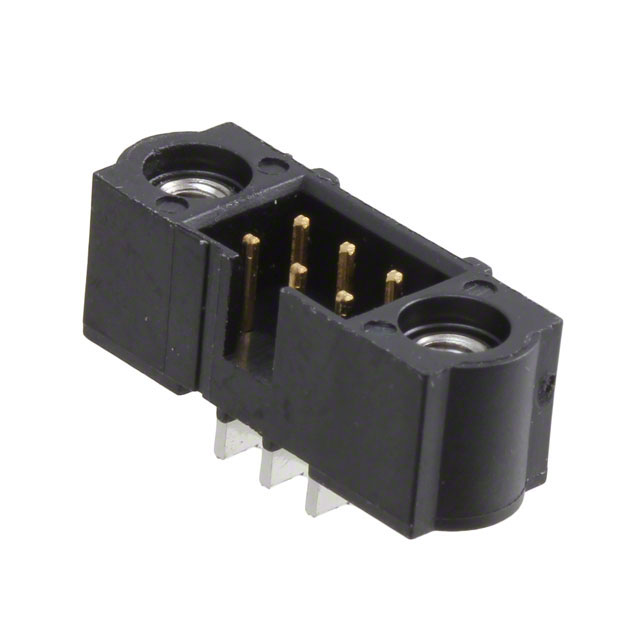

M80-5320642
ActiveHarwin Inc.
3+3 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-5320642
ActiveHarwin Inc.
3+3 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5320642 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.218 in |
| Insulation Height | 5.55 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-532 Series
| Part | Connector Type | Number of Rows | Contact Finish - Mating | Insulation Material | Number of Positions Loaded | Insulation Height | Insulation Height | Voltage Rating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Shrouding | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Contact Shape | Features | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Material Flammability Rating | Contact Type | Current Rating (Amps) | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.218 in | 5.55 mm | 800 V | Black | 3 µm | 118.1 µin | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 6 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Tin | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C | |
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.218 in | 5.55 mm | 800 V | Black | 3 µm | 118.1 µin | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 34 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Tin | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C | |
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.218 in | 5.55 mm | 800 VAC | Black | 0.3 µm | 12 µin | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 8 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Tin | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C | |
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.218 in | 5.55 mm | 800 V | Black | 3 µm | 118.1 µin | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 42 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Tin | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C | |
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.22 in | 5.6 mm | 800 VAC | Black | 0.75 µm | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 26 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Gold | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C | 29.5 µin | |
Harwin Inc. | Header | 2 | Gold | Polyphenylene Sulfide (PPS) Glass Filled | All | 0.218 in | 5.55 mm | 800 V | Black | 3 µm | 118.1 µin | Board to Board Cable | Surface Mount Right Angle | 29.5 Áin | 0.75 Ám | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | 14 | Circular | Keying Slot Mating Flange | 0.079 in | 2 mm | Tin-Lead | UL94 V-0 | Male Pin | 2.2 A | Brass | -55 °C | 125 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-532 Series
Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
