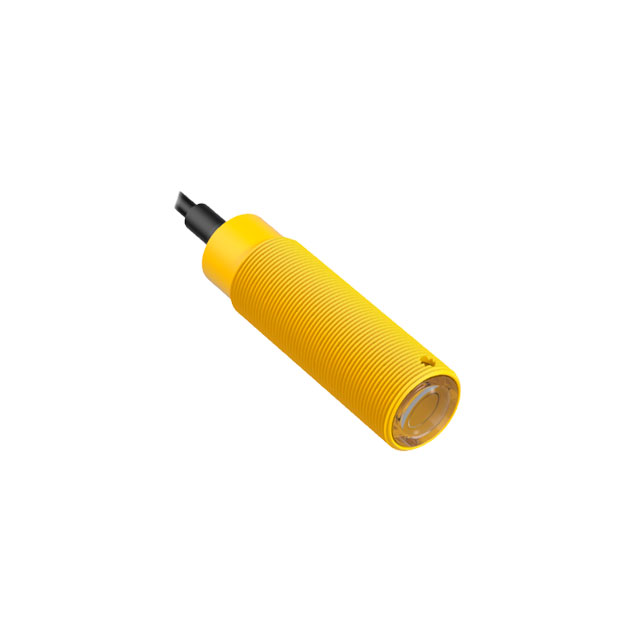

SM30PRL
ActivePHOTOELECTRIC SENSOR, SM30 SERIES, EZ-BEAM, PLASTIC, RECEIVER, OPPOSED, 30MM, NPN / PNP, 10-30VDC
Deep-Dive with AI
Search across all available documentation for this part.
SM30PRL
ActivePHOTOELECTRIC SENSOR, SM30 SERIES, EZ-BEAM, PLASTIC, RECEIVER, OPPOSED, 30MM, NPN / PNP, 10-30VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM30PRL |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67, NEMA 6P |
| Light Source | Infrared |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN/PNP - Dark-ON/Light-ON |
| Sensing Distance | 492.13 ft |
| Sensing Distance | 150 m |
| Sensing Method | Reflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SM30P Series
The SM30PRL is a Photoelectric Sensor with NPN and PNP output. The SM30 standard series 27291 sensor features EZ-BEAM technology with specially designed optics and electronics for reliable sensing without adjustments. Completely epoxy-encapsulated for superior durability, even in harsh sensing environments. It operates in opposed mode with a 60m range. It uses innovative dual-indicator system to take the guesswork out of monitoring sensor performance. Includes advanced diagnostics to warn of marginal sensing conditions or output overload (DC models).
