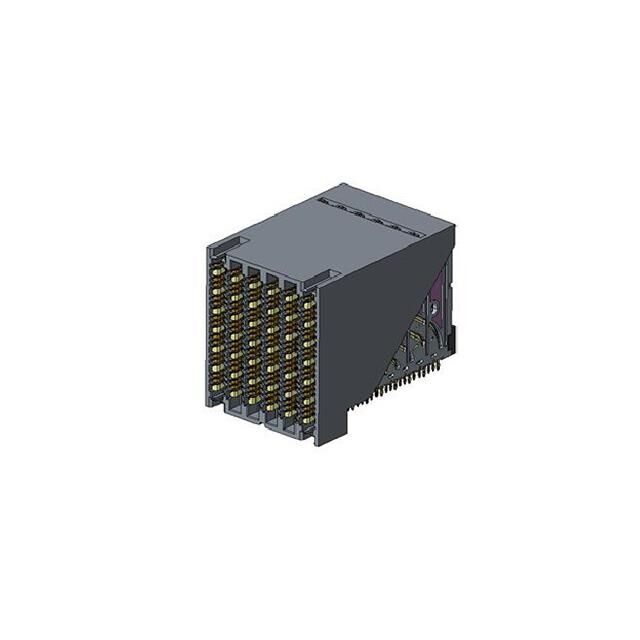

10124413-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 80P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 80P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10124413-101LF

Color	Black
Connector Style	ExaMax®, Receptacle, Hermaphroditic Contacts
Connector Type	Hermaphroditic Contacts, Receptacle
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Number of Columns	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination	Connector Style	Number of Positions Loaded	Color	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Amphenol ICC (FCI) 10124413-101LF	10	Hermaphroditic Contacts Receptacle	80	0.079 in	2 mm	UL94 V-0	Press-Fit	ExaMax® Hermaphroditic Contacts Receptacle	All	Black	8	85 °C	-55 °C	Board Edge Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

80 Connector Receptacle, Hermaphroditic Contacts Board Edge, Through Hole, Right Angle Black ExaMax®
