0385
ActiveLUMBERG

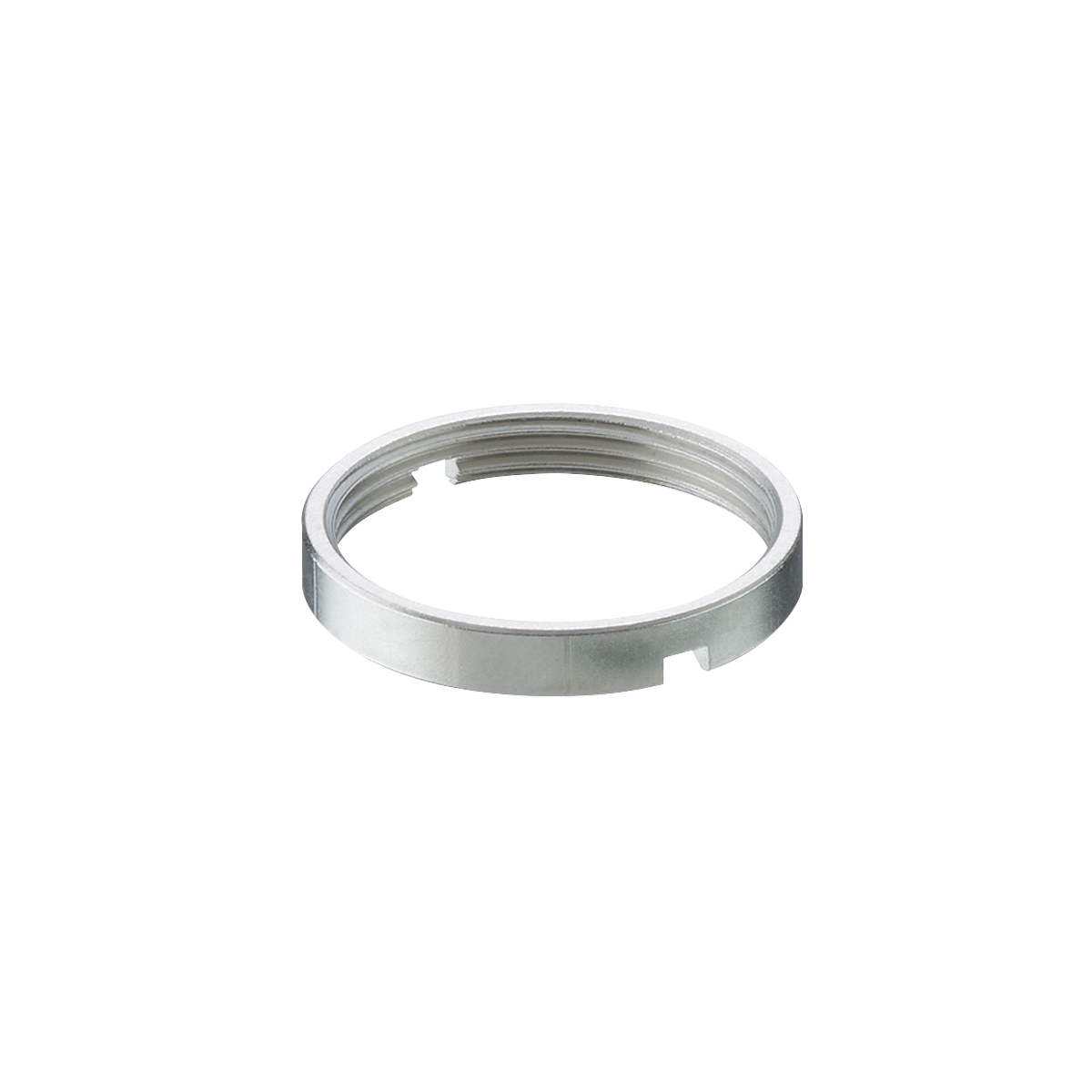

CONNECTOR ACCESSORY, SLIT NUT, CIRCULAR CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
0385
ActiveLUMBERG
CONNECTOR ACCESSORY, SLIT NUT, CIRCULAR CONNECTORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0385 | - Series |
|---|---|---|
| Accessory Type | - | Cap (Cover), Protective, Wrench |
| Color | - | Silver |
| Connector Type | - | Plug, Male Pins |
| Contact Finish - Mating | - | Silver, Gold |
| Features | - | Strain Relief, Chain, M16, Ground Contact |
| For Use With/Related Products | - | 03 Series Plug |
| Ingress Protection | - | IP40, IP68 |
| Material Flammability Rating | - | UL94 |
| Mounting Type | - | Free Hanging (In-Line), Cable Mount |
| Number of Positions | - | 4 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Tin |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Size - Insert | M16 | M16 |
| Termination | - | Solder |
- Series
CONNECTOR ACCESSORY, SLIT NUT, CIRCULAR CONNECTORS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Shell Material | Primary Material | Shell Size - Insert | Ingress Protection | Mounting Type | Number of Positions | Color | Termination | Connector Type | Material Flammability Rating | Contact Finish - Mating | Features | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LUMBERG 0385 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | |||||||||||
LUMBERG KV 60 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 6 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG SV 71 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 7 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG 0381 | M16 | Silver | 03 Series Plug | Cap (Cover), Protective | |||||||||||||
LUMBERG SV 80 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 8 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG 0383 | M16 | Silver | Chain | 03 Series Plug | Cap (Cover), Protective | ||||||||||||
LUMBERG KV 70 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 7 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG KV 80 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 8 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG SV 81 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 8 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief | ||
LUMBERG SV 70 | 85 °C | -40 °C | Nickel | Zinc Alloy | Metal | M16 | IP40 | Cable Mount, Free Hanging (In-Line) | 7 | Silver | Solder | Male Pins, Plug | UL94 | Gold, Silver | Strain Relief |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.83 | |||
| 100 | $ 0.64 | |||
| 1000 | $ 0.50 | |||
Description
General part information
- Series
Position Circular Connector
